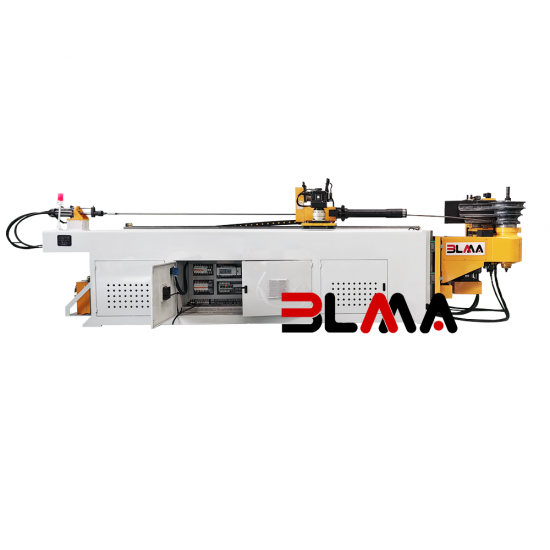

The DW75CNC-5AMSV is a high-performance 5-axis CNC pipe bending machine designed for fully automatic, precise, and efficient bending of pipes up to 75mm. Ideal for automotive, aerospace, HVAC, and heavy machinery applications.
Item No.:
DW75CNC-5AMSV

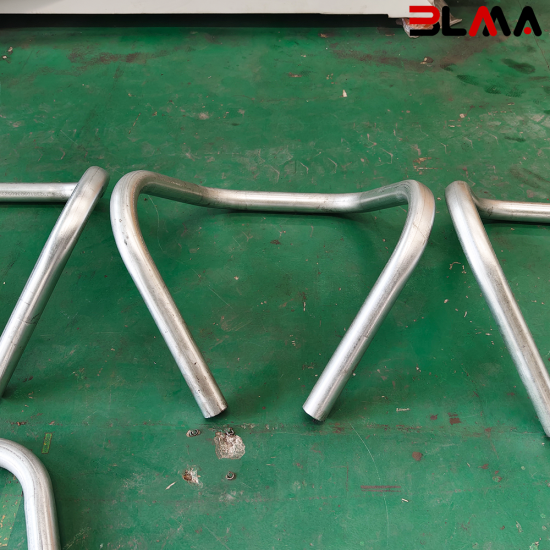

The DW75CNC-5AMSV is a high-performance 5-axis CNC pipe bending machine designed for precision bending of tubes up to 75mm. It combines advanced servo and hydraulic control for stable, accurate, and efficient production in industrial applications.
Machine features:

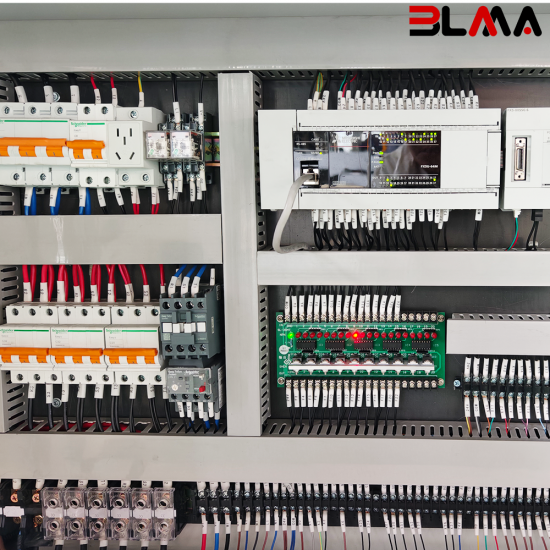

Using industrial touch screen, with the simple operation interface in English; high precision, high degree of automation and multi-functional; each action of machine is controlled by PLC programmer control system.
1. Fully automatic and CNC pipe bending machine.

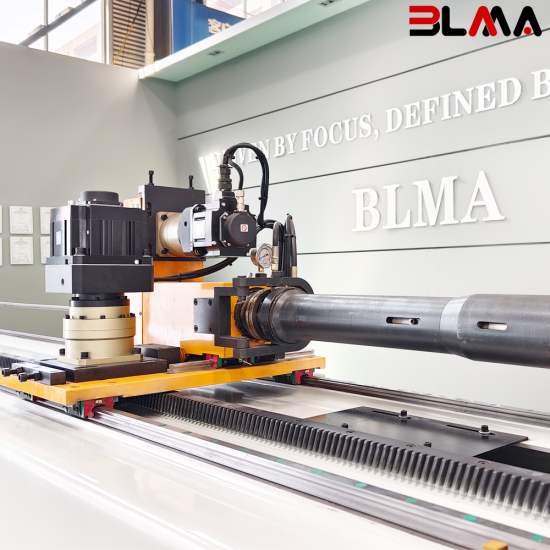

2. Equipped with servo motor programmable axis
3. Feeding: servo motor drive; Rotation: servo motor drive

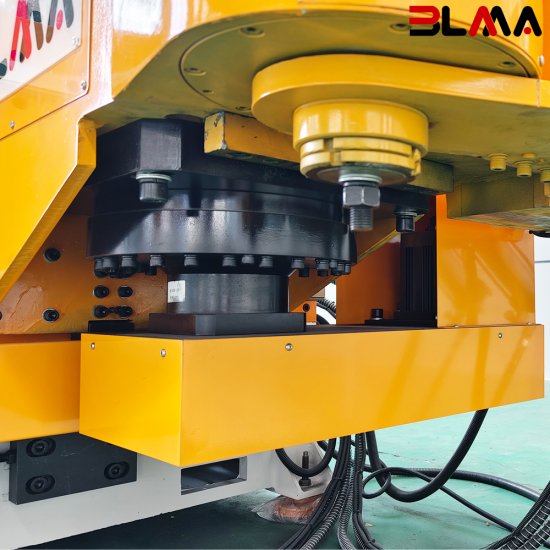

4. Bending: hydraulic and encoder control.
5. Imported hydraulic system and PLC(standard) unit.
6. Automatic lubrication system for moving areas.
7. Self-diagnostic system, detecting the error immediately.
8. Multiple groups pipe-bending information storage.
9. Electric cabinet cooling fan and the hydraulic cooling system ensure the equipment long-time work stably under the high temperature.
10. Touch screen and human/machine interface control provide user friendly operations.
Specification:
Main specification
DW75CNC-5A-MSV

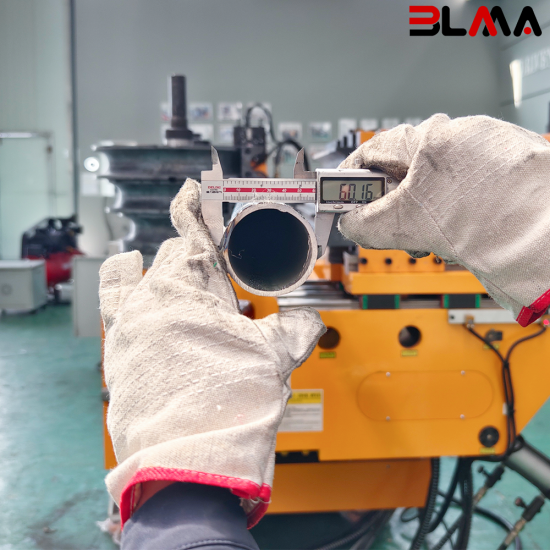

Max bending capacity
Φ75mm X 4mm
Max bending radius
R320mm
Min bending radius
According to pipe diameter
Max bending degree
190°
Feeding method
Clamping/direct feeding
Max feeding length
3600mm
Working speed
Bending speed
Max 80°/s
Rotary speed
Max 160°/s
Feeding speed
Max 1000mm/s
Accuracy
Bending accuracy
±0.1°
Rotary accuracy
±0.1°
Feeding accuracy
±0.1mm
Information inputting method
Working value（Y,B,C）
Bending method
Servomotor bending(5A)
Bending servo motor power
11kw
Feeding servo motor power
3kw
Rotary servo motor power
1KW
Left and right moving servo motor power
2KW
Up and down moving servo motor power
5KW
Max storage unit
1000groups
Max oil pressure
14Mpa
Machine weight
5000kg
Machine size
5800X1700X1800mm
Standard components (can be
customized):
Name
Supplier
PLC controller
Mitsubishi/Easycat,Japan/Taiwan
Touch screen
Winview/Easycat,Taiwan
Servo Motor
Yawakasa/Mitsubishi/Easycat,Japan/Taiwan
Servo driver
Yawakasa/Mitsubishi/Easycat,Japan/Taiwan
Reducer
RV/Xingxing,Taiwan
Main electrics
Schneider/Omron,France/Japan
Hydraulic motor
Yuanbang/Siemens,Germany/Taiwan
Valves
Seven Ocean/Yuken,Taiwan/Japan
Vane pump
Kaida/Sunny,Taiwan/USA
Sealing element
NOK,Japan
Rack
YYC,Taiwan
Linear guideway
HIWIN,Taiwan
Specification:
|
Main specification |
DW75CNC-5A-MSV |
|
|
Max bending capacity |
Φ75mm X 4mm |
|
|
Max bending radius |
R320mm |
|
|
Min bending radius |
According to pipe diameter |
|
|
Max bending degree |
190° |
|
|
Feeding method |
Clamping/direct feeding |
|
|
Max feeding length |
3600mm |
|
|
Working speed |
Bending speed |
Max 80°/s |
|
Rotary speed |
Max 160°/s |
|
|
Feeding speed |
Max 1000mm/s |
|
|
Accuracy |
Bending accuracy |
±0.1° |
|
Rotary accuracy |
±0.1° |
|
|
Feeding accuracy |
±0.1mm |
|
|
Information inputting method |
Working value（Y,B,C） |
|
|
Bending method |
Servomotor bending(5A) |
|
|
Bending servo motor power |
11kw |
|
|
Feeding servo motor power |
3kw |
|
|
Rotary servo motor power |
1KW |
|
|
Left and right moving servo motor power |
2KW |
|
|
Up and down moving servo motor power
|
5KW |
|
|
Max storage unit |
1000groups |
|
|
Max oil pressure |
14Mpa |
|
|
Machine weight |
5000kg |
|
|
Machine size |
5800X1700X1800mm |
|
Standard components (can becustomized):
|
Name |
Supplier |
|
PLC controller |
Mitsubishi/Easycat,Japan/Taiwan |
|
Touch screen |
Winview/Easycat,Taiwan |
|
Servo Motor |
Yawakasa/Mitsubishi/Easycat,Japan/Taiwan |
|
Servo driver |
Yawakasa/Mitsubishi/Easycat,Japan/Taiwan |
|
Reducer |
RV/Xingxing,Taiwan |
|
Main electrics |
Schneider/Omron,France/Japan |
|
Hydraulic motor |
Yuanbang/Siemens,Germany/Taiwan |
|
Valves |
Seven Ocean/Yuken,Taiwan/Japan |
|
Vane pump |
Kaida/Sunny,Taiwan/USA |
|
Sealing element |
NOK,Japan |
|
Rack |
YYC,Taiwan |
|
Linear guideway |
HIWIN,Taiwan |
