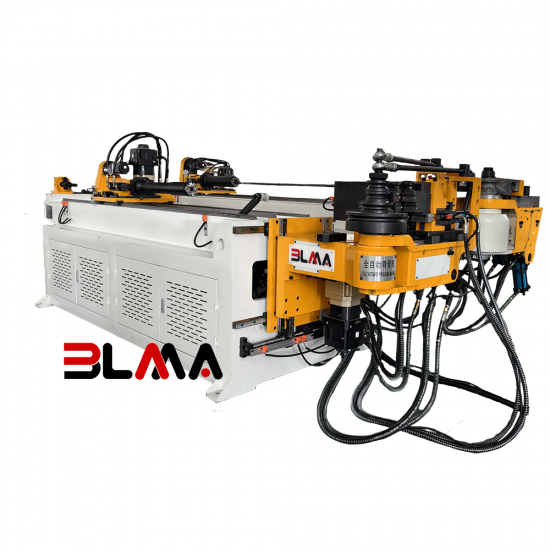

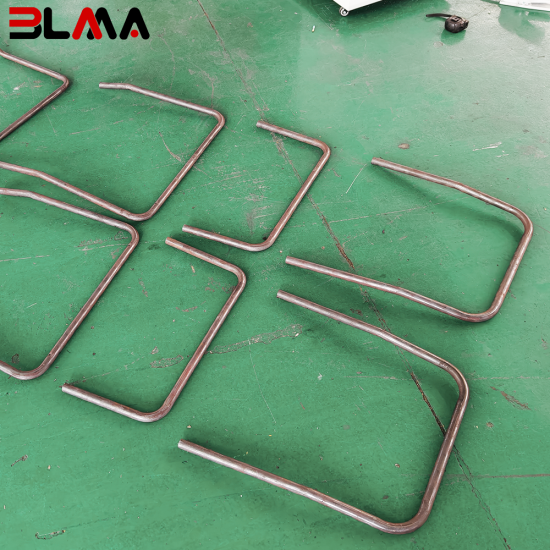

The DW38CNC-5AMSV is a fully automatic CNC pipe bending machine equipped with 5-axis control (servo-controlled feeding, rotating, and bending + hydraulic clamping and mandrel). This model is ideal for precision bending of tubes up to Ø38mm in industries such as automotive, HVAC, furniture, and aerospace.
Item No.:
DW38CNC-5AMSV
The DW38CNC-5AMSV is a fully electric CNC pipe bending machine designed for high-precision and efficient tube forming. With 5-axis servo control and a compact structure, it delivers stable, repeatable performance for complex bending tasks. Ideal for industries such as automotive, furniture, and fitness equipment. Optional robotic arm and laser protection are available to further enhance automation and safety.

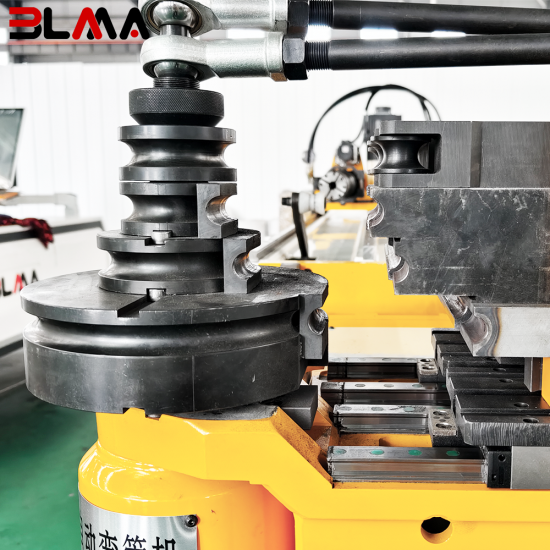

Machine features:

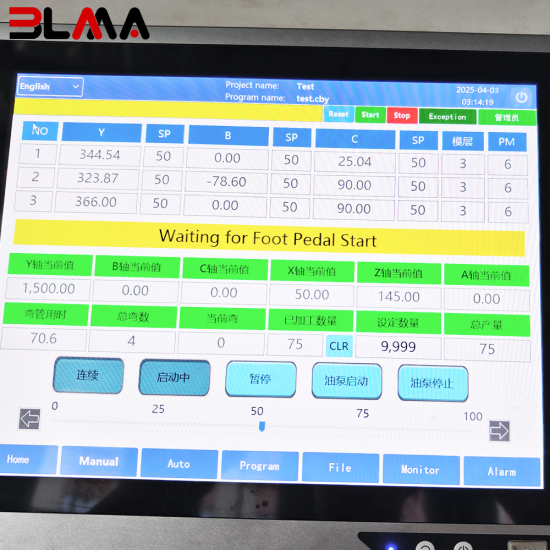

Using industrial touch screen, with the simple operation interface in English; high precision, high degree of automation and multi-functional; each action of machine is controlled by PLC programmer control system.
1. Fully automatic and CNC pipe bending machine.
2. Equipped with servo motor programmable axis

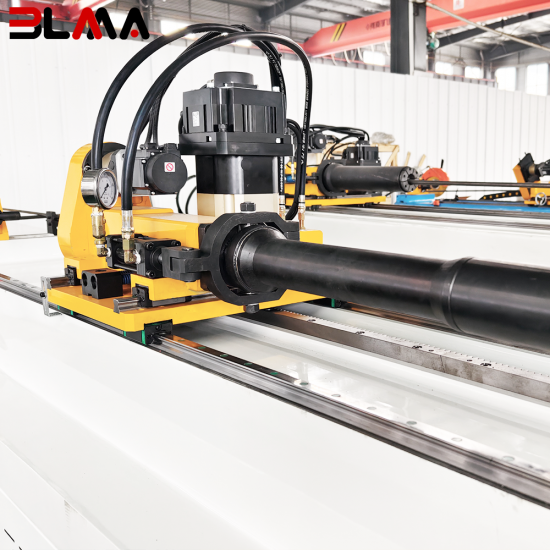

3. Feeding: servo motor drive; Rotation: servo motor drive
4. Bending: hydraulic and encoder control.
5. Imported hydraulic system and PLC(standard) unit.
6. Automatic lubrication system for moving areas.
7. Self-diagnostic system, detecting the error immediately.
8. Multiple groups pipe-bending information storage.
9. Electric cabinet cooling fan and the hydraulic cooling system ensure the equipment long-time work stably under the high temperature.
10. Touch screen and human/machine interface control provide user friendly operations.
Specification:
Main specification
DW38CNC-5A-MSV
Max bending capacity
Φ38mm X 2mm
Max bending radius
R180mm
Min bending radius
According to pipe diameter
Max bending degree
190°
Feeding method
Clamping/direct feeding
Max feeding length
2200mm
Working speed
Bending speed
Max 90°/s
Rotary speed
Max 160°/s
Feeding speed
Max 800mm/s
Accuracy
Bending accuracy
±0.1°
Rotary accuracy
±0.1°
Feeding accuracy
±0.1mm
Information inputting method
Working value（Y,B,C）
Bending method
Servomotor bending(5A)
Bending servo motor power
3kw
Feeding servo motor power
2kw
Rotary servo motor power
0.75KW
Left and right moving servo motor power
0.75KW
Up and down moving servo motor power
3KW
Max storage unit
1000groups
Max oil pressure
14Mpa
Machine weight
2000kg
Machine size
4500X1500X1700mm
Standard components (can be
customized):
Name
Supplier
PLC controller
Mitsubishi/Easycat,Japan/Taiwan
Touch screen
Winview/Easycat,Taiwan
Servo Motor
Yawakasa/Mitsubishi/Easycat,Japan/Taiwan
Servo driver
Yawakasa/Mitsubishi/Easycat,Japan/Taiwan
Reducer
RV/Xingxing,Taiwan
Main electrics
Schneider/Omron,France/Japan
Hydraulic motor
Yuanbang/Siemens,Germany/Taiwan
Valves
Seven Ocean/Yuken,Taiwan/Japan
Vane pump
Kaida/Sunny,Taiwan/USA
Sealing element
NOK,Japan
Rack
YYC,Taiwan
Linear guideway
HIWIN,Taiwan
Specification:
|
Main specification |
DW38CNC-5A-MSV |
|
|
Max bending capacity |
Φ38mm X 2mm |
|
|
Max bending radius |
R180mm |
|
|
Min bending radius |
According to pipe diameter |
|
|
Max bending degree |
190° |
|
|
Feeding method |
Clamping/direct feeding |
|
|
Max feeding length |
2200mm |
|
|
Working speed |
Bending speed |
Max 90°/s |
|
Rotary speed |
Max 160°/s |
|
|
Feeding speed |
Max 800mm/s |
|
|
Accuracy |
Bending accuracy |
±0.1° |
|
Rotary accuracy |
±0.1° |
|
|
Feeding accuracy |
±0.1mm |
|
|
Information inputting method |
Working value（Y,B,C） |
|
|
Bending method |
Servomotor bending(5A) |
|
|
Bending servo motor power |
3kw |
|
|
Feeding servo motor power |
2kw |
|
|
Rotary servo motor power |
0.75KW |
|
|
Left and right moving servo motor power |
0.75KW |
|
|
Up and down moving servo motor power
|
3KW |
|
|
Max storage unit |
1000groups |
|
|
Max oil pressure |
14Mpa |
|
|
Machine weight |
2000kg |
|
|
Machine size |
4500X1500X1700mm |
|
Standard components (can becustomized):
|
Name |
Supplier |
|
PLC controller |
Mitsubishi/Easycat,Japan/Taiwan |
|
Touch screen |
Winview/Easycat,Taiwan |
|
Servo Motor |
Yawakasa/Mitsubishi/Easycat,Japan/Taiwan |
|
Servo driver |
Yawakasa/Mitsubishi/Easycat,Japan/Taiwan |
|
Reducer |
RV/Xingxing,Taiwan |
|
Main electrics |
Schneider/Omron,France/Japan |
|
Hydraulic motor |
Yuanbang/Siemens,Germany/Taiwan |
|
Valves |
Seven Ocean/Yuken,Taiwan/Japan |
|
Vane pump |
Kaida/Sunny,Taiwan/USA |
|
Sealing element |
NOK,Japan |
|
Rack |
YYC,Taiwan |
|
Linear guideway |
HIWIN,Taiwan |
