10.Suitable for various materials such as steel, stainless, aluminum and copper
Technical specifications
SPECIFICATION OF PIPE BENDING MACHINE
|
PARAMETERS |
SPECIFICATION |
|
Maximum Bending Capability round pipe diameter & wall thickness |
Diameter ≥θ89mm, Thickness ≥6mm |
|
Maximum Bending Capability Radius (CLR) |
Radius ≥300mm |
|
Bending Angle Range |
Lower Limit ≤10 |
|
Mandrel Length |
|
|
Control System |
NC ( Numerical Control) |
|
Motor Power |
Min 10KW |
|
Hydraulic Pressure |
Min 12 Mpa |
|
Hydraulic System Control |
Electromagnetic |
|
Tank Capacity |
150-350 Ltr. |
|
Bending Accuracy |
|
|
Operation System |
Semi-automatic |
|
Cooling System |
Hydraulic or Water Cooled |
|
Input Power |
3Phase, 380-440V, 50HZ |
|
Measurement |
4550x1050x1550 mm |
|
Weight of Machine |
4000 Kg |
|
Suitable for Various materials |
all kind of MS, Aluminum Stainless Steel |
|
Standard Accessories |
Standard Accessories along with the tool box set provided |
|
Additional Accessories |
Die set (1/2" , 3/4", 1", 1.5", 2", 2.5", 3") provided additionally |
|
Standard |
ISO and CE Certified |
|
Warranty |
13 Months |
|
Operation and maintenance catalogue/manuals |
Hard and Soft Copy provided in English |
Standard components (can be customized):
|
Name |
Supplier |
|
Hydraulic Motor |
Taiwan, Yuanbang |
|
Main electrics |
Zhengtai,China/Schneider,France |
|
Valves |
Taiwan Seven Ocean |
|
Vane pump |
Taiwan, Kaida |
|
Sealing element |
Taiwan DZ |
|
Control system |
Taiwan JieJun |
|
Oil tube |
Jiangsu Kejia |

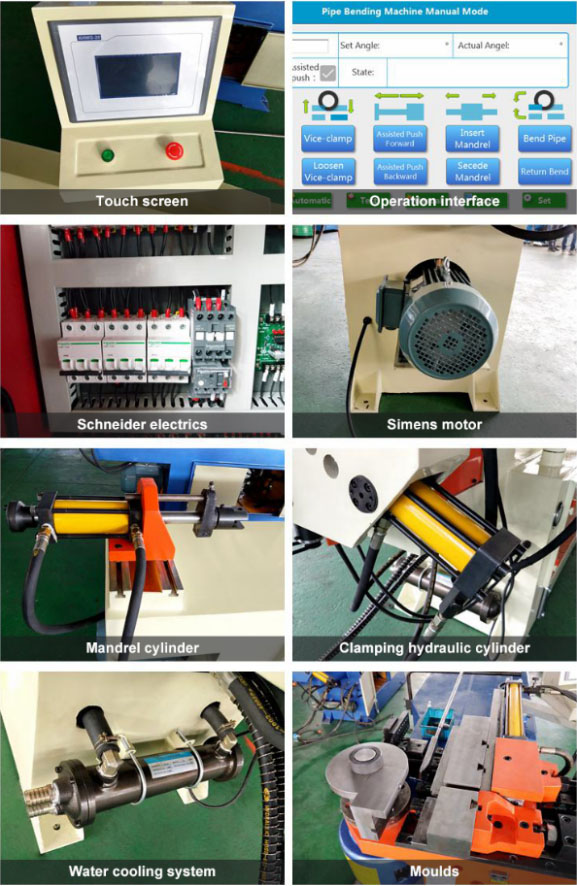

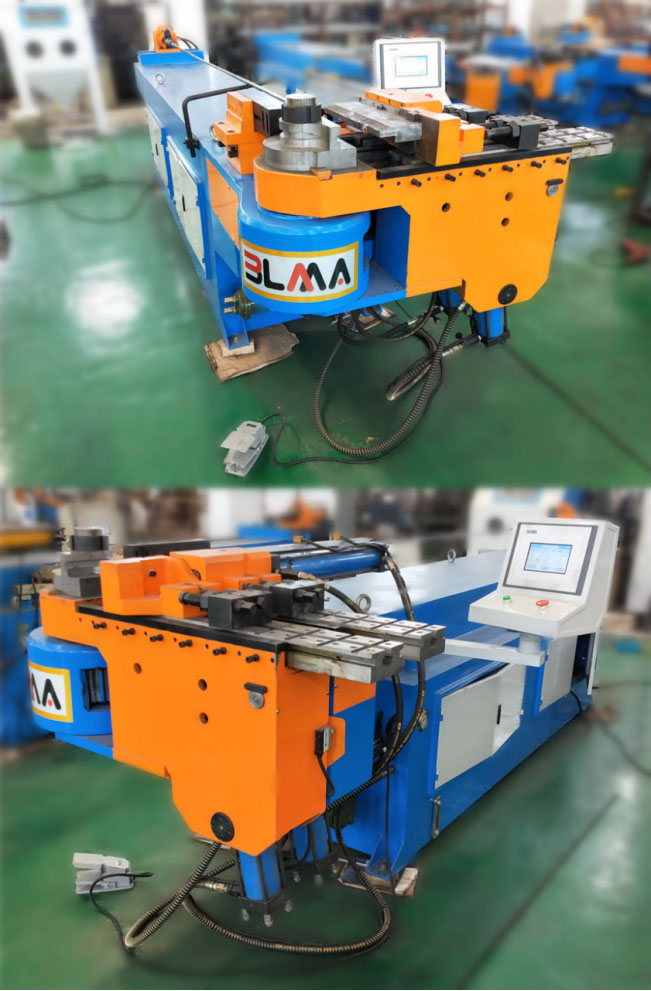

Machine detailed photos:

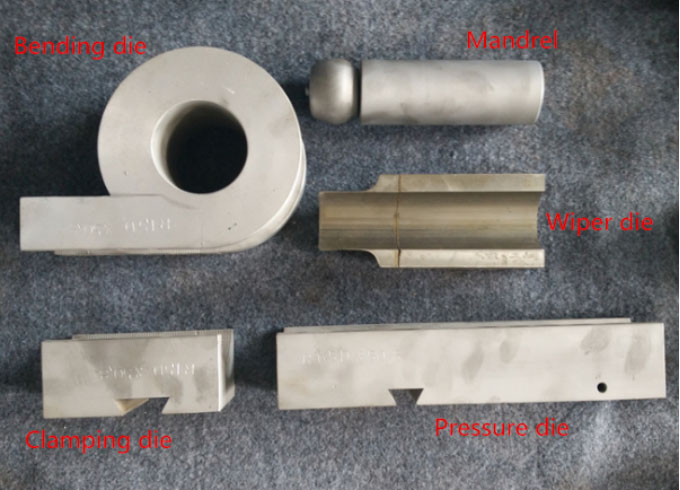

One full set molds.
Quality guarantee and after-sales service:
1).Our machine is easy to use. Operation manual and teaching video will be sent out with machine.
We also offer free training in our factory, the following is our training contents:
Detailed function of our machine, 1 hour;
NC control using, 0.5 hour;
Tooling installation and adjustment, 0.5-1 hours;
Maintenance and repair, 0.5-1 hours;
Real operation according client products, 1-2 hours.
During the training period,we offer free pick-up,hotel and food.
2).We guarantee machine quality for 13 months, during this period, if spare parts of the machine are not man-made damage, we can send the component to the customer by DHL, TNT freely.
3).Our factory provide the service for the customer forever, if the customer need our operation help,can contact us by Skype, Email and Telephone at any time, we provide 24 hours on-line service.
