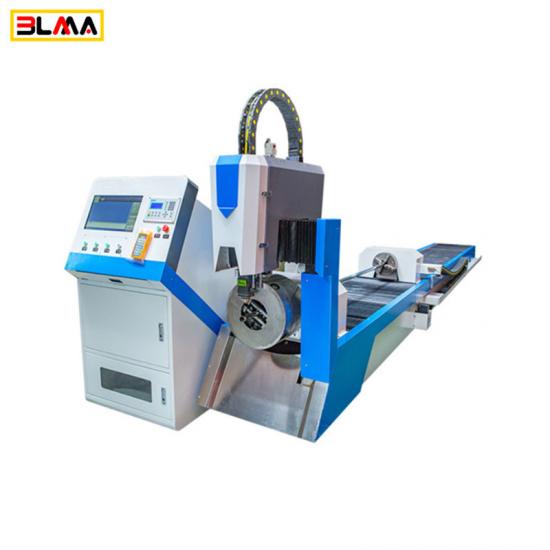

1000w 2000w 3000w 6m 9m 12m steel metal cnc pipe tube fiber laser cutting machine

1000w 2000w 3000w 6m 9m 12m steel metal cnc pipe tube fiber laser cutting machine,can be used to cut a variety of metal pipes, such as: stainless steel pipes, carbon steel pipes, mild steel tubes and many other materials in need of complex metal cutting.

  • Item No.:

    BL-6000FC-2000
  • Payment:

    T/T,L/C,D/P,Western Union,MoneyGram
  • Product origin:

    Jiangsu,China
  • Color:

    Blue-white can be customized
  • Shipping port:

    Shanghai
  • Lead Time:

    30 days after deposit confirmed
Inquiry now

Factory direct sale price/offer free training and customer's place commissioning
Machine customized design/logo/color/size are acceptable

1000w 2000w 3000w 6m 9m 12m steel metal cnc pipe tube fiber laser cutting machine


1. This tube laser cutting machine has the function of automatic positioning: only need to feed manually to complete the cutting, it is an ideal, efficient and convenient cutting machine for metal pipe laser cutting.
2. The cnc tube fiber laser cutting machine covers a small area, the structure of the square tube laser cutting machine is precise and beautiful, and the work is solid and firm.
3. High precision: Adopt imported IPG laser source to ensure good laser beam quality. The cutting tube length of the square pipe laser cutting machine can reach 6/8 meters, cutting pipe diameter of 20-200 mm /20-300 mm. Adjustable with scale and good cutting quality.
4. Batch processing: The daily output can reach 15 thousand pcs, the square tube laser cutting machine is suitable for mass cutting operations.
5. Suitable for thin pipe laser cutting, coat hanger tube, mop pipe, mosquito net pipe, curtain tube and so on.
6. The operation of the square tube laser cutting machine is simple and no professional training is needed. The speed of the square tube laser cutting machine is very high and the output is more than 5 times that of manual operation.
7. Fast speed: no deformation and burr of incision, the speed of the square tube laser cutting machine is up to 1 second spent on each cutting.
8. The square metal pipe laser cutting machine has better effect in cutting thin circular pipes, with super low cost, no noise and no dust.
9. High flexibility: There are many types of cutting pipes, such as round pipe, square tube, flat tube and so on. The square tube laser cutting machine can also support three dimensional machining such as pipe laser cutting, punching, hollow carving and bevel cutting.
10.Equipped with multiple different auxiliary gas inputs, automatic conversion of high and low pressures and different gases.



pipe fiber laser cutting machine


The technical parameters of 2kw 6m pipe laser fiber cutting machine:

Model BL-6000FC-2000
Laser type fiber laser
Rated output power
2000w
Processing length
6000mm
X/Y/Z axis stoke
200mm/6500mm/300mm
U axis stroke
Infinite rotation
The diameter range of round pipe
ø20-220mm
The max diameter of square pipe
≤150x15mm
X/Y axis positioning accuracy
≤0.03mm/m
X/Y axis repositioning accuracy
≤0.03mm/m
Max cutting speed
50m/min
Max idling speed
60m/min
Max Idling Acceleration
0.5G
Power supply requirement
3 phase 380V, 50Hz
Power protection rating
IP54

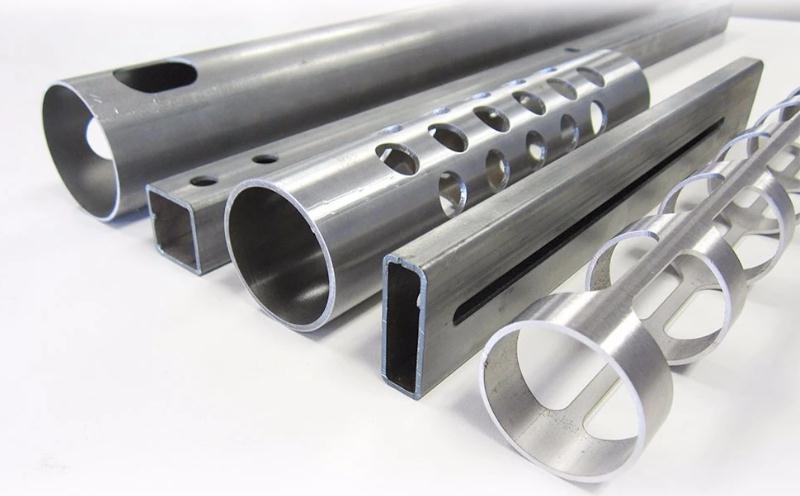

The cutting workpiece of pipe laser cutting machine for reference:

pipe laser cutting machine workpiece
