BLMA: Classification of pipe cutting machines

Classification of pipe cutting machines

1. Manual pipe cutting machine

The manual pipe cutter is light in weight, easy to carry and easy to operate on site. The price is also the cheapest one. Because it is a manual cutting machine, the cutting angle can be adjusted manually. However, manual mode is adopted for feeding, positioning and feeding. The operation process will be more dangerous, and the operator will be required to wear gloves, helmets and goggles. And it requires trained or experienced operators to use it.

2. Pneumatic pipe cutting machine
Pneumatic pipe cutting machine, automatic clamp automatic feed, except for the basic structure and accessories, the clamp and head advance and retreat are all pneumatic automatic. Bilateral two-way clamps make the workpiece stable, and the cutting surface is smooth and free of burrs. The cutting is accurate and the speed exceeds that of band saws and bow saws. At the same time, the cutting surface is smooth and does not generate heat, saving secondary processing. The machine head can be adjusted left and right to bevel. The angle is accurate and the pipe cut is perfect. With automatic coolant injection system. The price is also very affordable, but it is generally recommended to cut one tube at a time, and then manually position the cutting position. It can cut iron pipes up to 80mm in diameter.

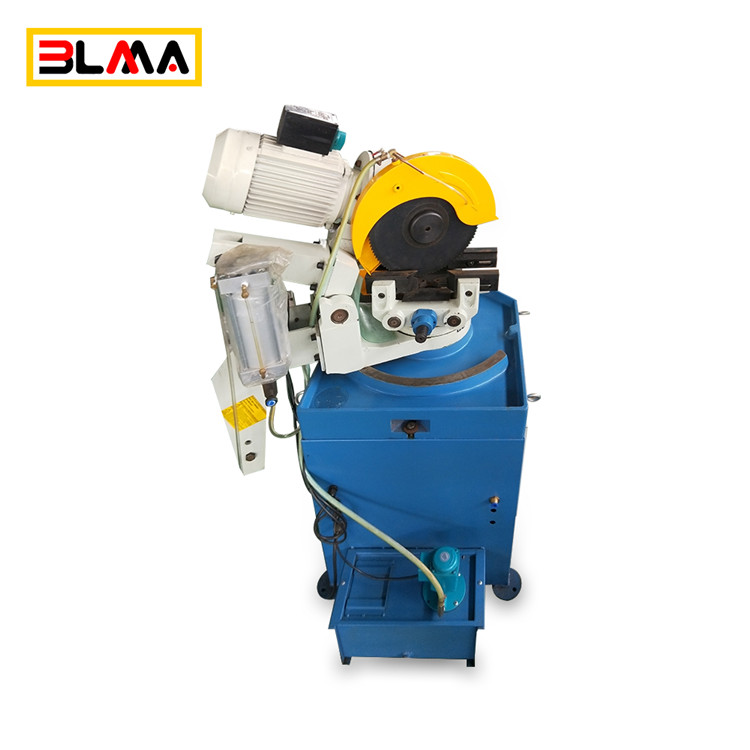

Pneumatic pipe cutting machine

3. Hydraulic semi-automatic NC pipe cutting machine
It advances and retracts the knife vertically up and down. The feed is very stable and the tool life is also very long. The structure of the machine head is sturdy and the vibration is small. The coolant is also automatically circulated to ensure the smooth cut surface of the workpiece. The chamfer can also be adjusted left and right. The price will be slightly more expensive than the pneumatic pipe cutter, but it can cut iron pipes up to 130mm in diameter.

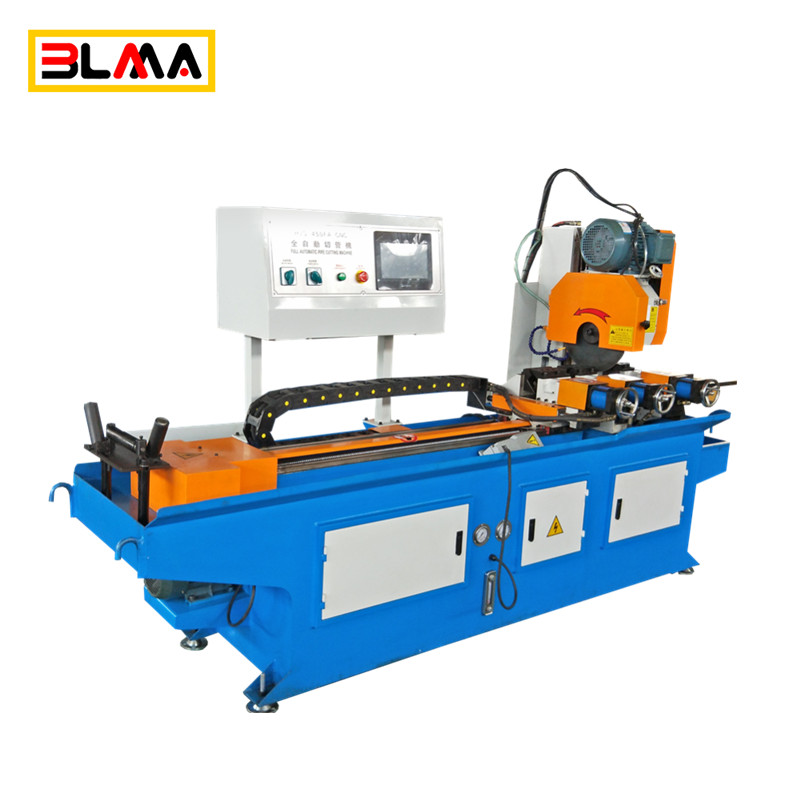

4. Hydraulic automatic CNC pipe cutting machine
The main difference between this model and the third introduction is that it is fully automatic. The automatic pipe cutting machine can automatically clamp the material, feed the knife, feed the material, set the size, stop at a fixed number, and measure the work. The main circuit of the machine adopts PLC programmable logic controller to work. Automatic feeding, clamping and cutting system, accurate and fast feeding, cutting 10-50 times per minute. The counter can set the number of cutting times, and it will stop automatically after cutting. There is no need for manual operation at all, higher mechatronics, and even one person can operate multiple machines, reducing the number of employees. The total counter can count the workload records of a day. The total pressure, front, back, and pressure can be adjusted steplessly to ensure that the workpiece is not pinched and deformed. The servo pipe cutting machine is used to ensure the accuracy of the pipe length within plus or minus 0.05mm (the error mainly occurs on the steel pipe and the tool ), the incision is shiny and has no burrs. And the automatic pipe cutting machine can cut multiple pipes at a time, and the maximum diameter of one pipe is about 130mm. The feeding mode adopts pinch feeding, so there is no feeding length limit. And the coolant is automatically injected into the mode to ensure that the cutting surface is smooth and there is no spark in the cutting process. This extends the service life of the saw blade and the cutting process is very safe. The machine also comes with two modes of low-speed and high-speed cutting. The operator can choose according to the pipe diameter and thickness to be cut.
pipe cutting machine
