Circular saw metal stainless steel auto pipe tube cutting machine, with automatic feeding, positioning and cutting function,has a function of cutting out a variety of lengths.
Item No.:
MC425CNCPayment:
T/T,L/C,D/P,Western Union,MoneyGramProduct origin:
Jiangsu,ChinaColor:
Blue can be customizedShipping port:
ShanghaiLead Time:
15 days after deposit confirmed
Factory direct sale price/offer free training and customer's place commissioning
Machine customized design/logo/color/size are acceptable

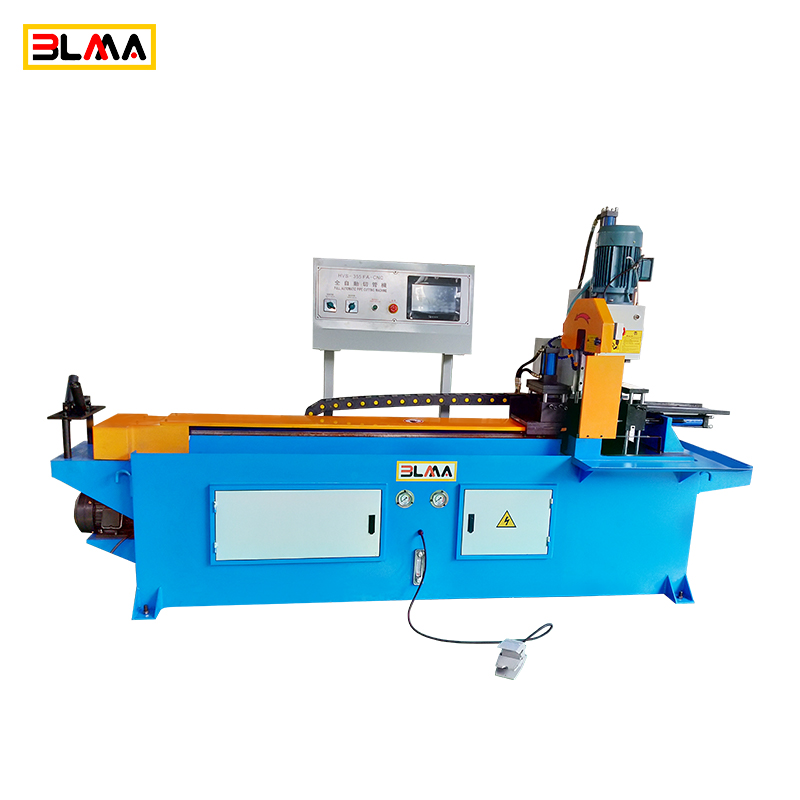

Product name: Circular saw metal stainless steel auto pipe tube cutting machine
circular saw pipe cutting machine features:
1. Imported hydraulic system, cutting powerful and the saw blade durable.
2. Linear Guide Raids with lube and vertical slide-way cutting make the cutting steady and accurate.
3. Separated control of cutting and clamping, special-designed clamping method make the clamping
deformation very little, especially suitable for thin pipes and stainless steel pipes.
4. Robust design ensures low vibration, steel pipe cutting machine can work for long-time and with low noise.
5. Automatic water cooling system makes the cutting surface smooth and of little flash and strain, also makes the saw blade long-time use.
6. The cutting scraps of metal pipe cutting machine are treated together and the maintance is easy.
7. Easy to operate. Extremely powerful functions makes it ideal for small lot flexible cutting requirements.
8.Human/machine interface control provides user friendly operations.
9. Touch sensing screen. Numerically controlled, provides high cutting accuracy.
10.Using for automobile fittings ( oil pipe for brake, muffler, seats), motorcycle, healthy equipment, air-conditioning,bicycle, steel furniture, sanitary wares and so on
Main specification |
MC425CNC |
|
Sawing Range |
Round pipe |
Φ150 mm |
Square pipe |
120×120mm |
|
Rectangle pipe |
160×70mm |
|
Solid round pipe |
50mm |
|
Solid square pipe |
50x50mm |
|
Available Saw Blade Size |
300/315/350/400/450mm |
|
Hydraulic pump motor |
4.0KW |
|
Oil pressure(hydraulic) |
4MPa |
|
Feeding servo motor power |
1.0kw |
|
Feeding length |
0-1000mm (Can be customized) |
|
Machine weight |
1600KG |
|
Size |
2200×1400×2200mm |

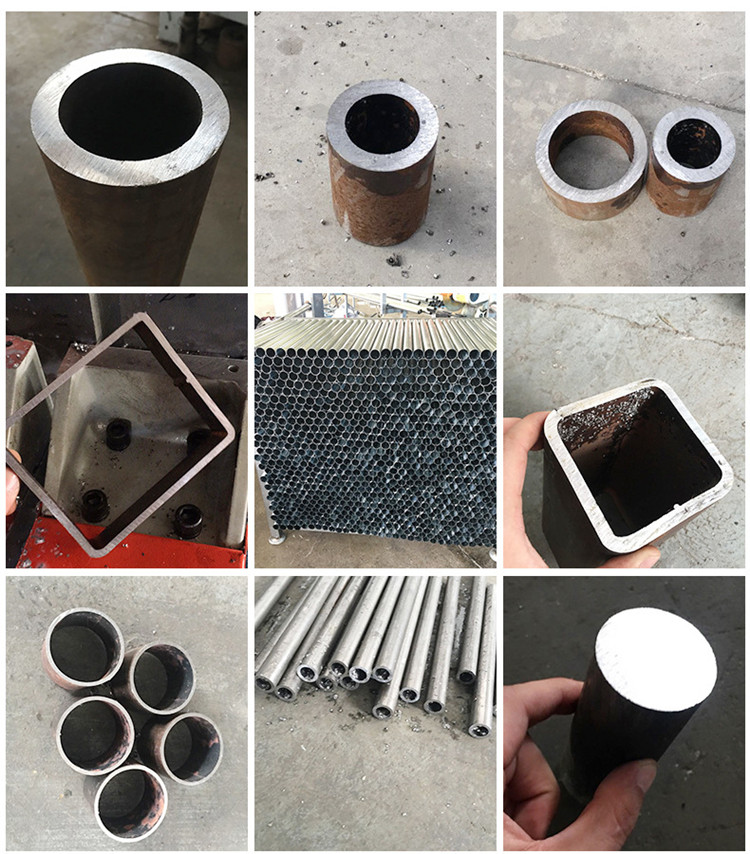

Pipe tube cutting machine cutting pipes sample:
