DW130CNC-2A-1S IPC strong push 2.5 3 4 5 inch exhaust pipe bender,is widely used in bending big size metal pipes mainly for the application of truck exhaust system,shipyard,gym frame...
Item No.:
DW130CNC-2A-1SPayment:
T/T,L/C,D/P,Western Union,MoneyGramProduct origin:
Jiangsu,ChinaColor:
Blue grey red...Shipping port:
ShanghaiLead Time:
30 working days
Factory direct sale price/offer free training and customer's place commissioning
Machine customized design/logo/color/size are acceptable

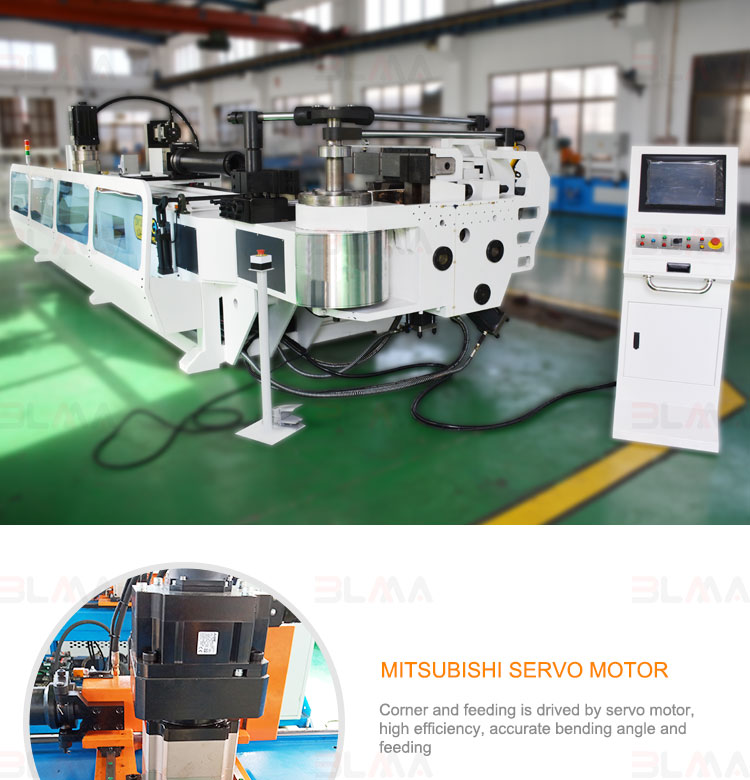

Product name: DW130CNC-2A-1S IPC strong push 2.5 3 4 5 inch exhaust pipe bender
Main features:
5 inch exhaust pipe bender equipped with 2 programmable axis, IPC Control;
Feeding of 3 exhaust pipe bender: servo motor drive, with pushing function;
Rotation of 2.5 exhaust pipe bender: servo motor drive;
Bending of cheap exhaust pipe bender: hydraulic and encoder control;
exhaust benders import integrated hydraulic system, with two hydraulic motors;
Automatic lubrication system for moving areas;
Self-diagnostic system, detecting the error immediately;
4 exhaust pipe bender More than 100,000 groups pipe-bending information storage;

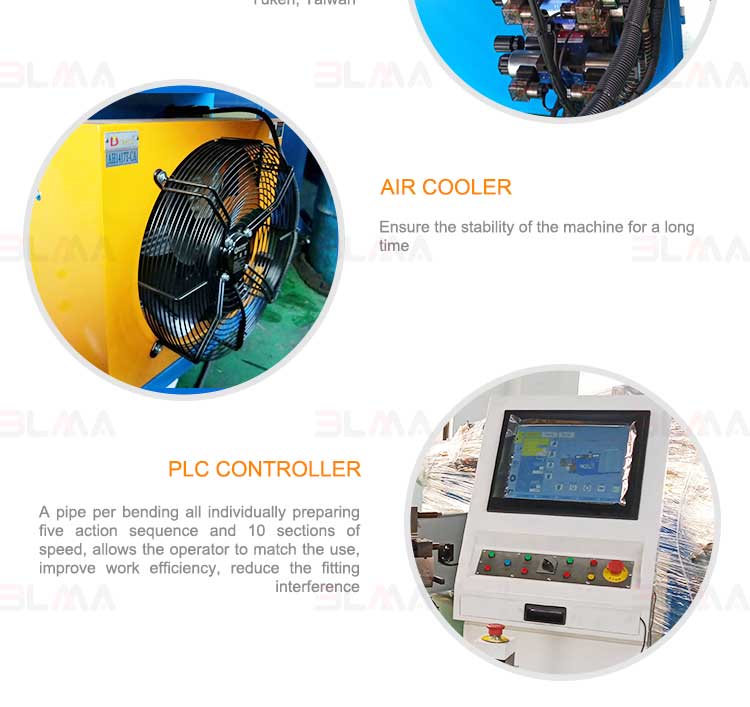

Touch screen system and human/machine interface control provide user friendly operations;
Separated industry air conditioner for cooling system ensure long time continuously working under high temperature.
Components:
Name | Brand |
PLC |
Japan Mitsubishi |
Touch screen | Taiwan Winview |

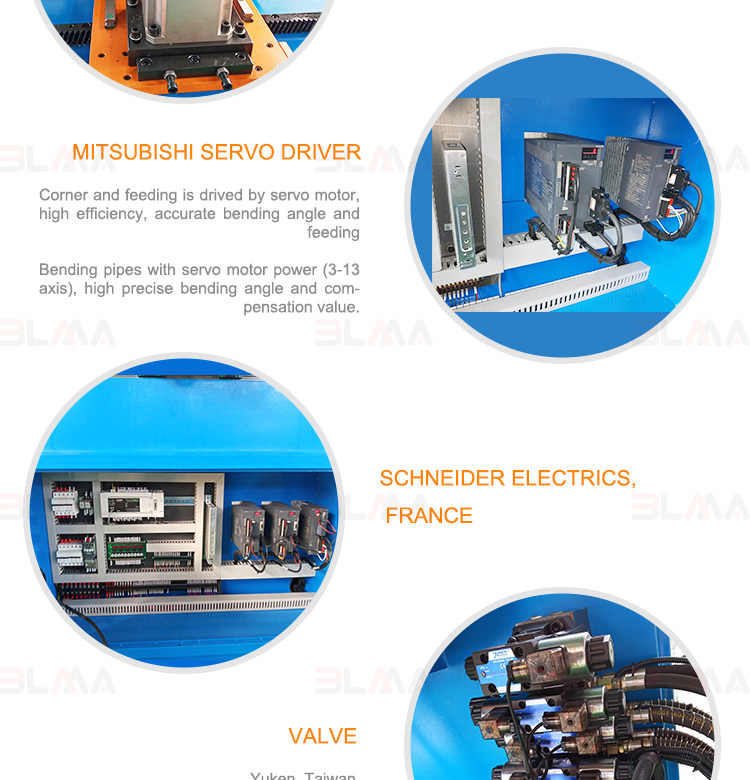

Servo motor | Japan Yaskawa/Mitsubishi |
Servo driver | Japan Yaskawa/Mitsubishi |
Reducer | Taiwan RV/Xingxing |
Main electrics | France Schneider |
Hydraulic motor | Taiwan Yuanbang |
Valves | Taiwan Seven Ocean |
Vane pump | Taiwan Kaida |
Sealing element | Taiwan Dingji |
Rack | Germany Atlanta |
Linear guideway | Taiwan Hiwin |
The samples of pipe bending machine:
