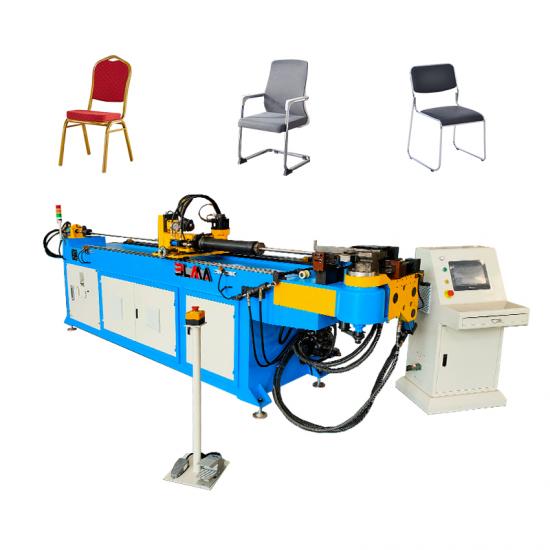

BLMA’s CNC automatic pipe bending machine is the optimal choice for budget-friendly pipe bending (round, oval, rectangular, etc.), where high repeatability, superior bending quality, and low machine cost are required. These machines have proven their reliability in the furniture, automotive, shipbuilding and many other industries.
Machine features:
Using industrial touch screen, with the simple operation interface in English; high precision, high degree of automation and multi-functional; each action of machine is controlled by PLC programmer control system.
1. Fully automatic and CNC pipe bending machine.
2. Equipped with servo motor programmable axis
3. Feeding: servo motor drive; Rotation: servo motor drive
4. Bending: hydraulic and encoder control.
5. Imported hydraulic system and PLC(standard) unit.
6. Automatic lubrication system for moving areas.
7. Self-diagnostic system, detecting the error immediately.
8. Multiple groups pipe-bending information storage.
9. Electric cabinet cooling fan and the hydraulic cooling system ensure the equipment long-time work stably under the high temperature.
10. Touch screen and human/machine interface control provide user friendly operations.
Specification:
|
Main specification |
DW38CNC-2A- 1S |
|
|
Max bending capacity |
Φ38mm X 2mm |
|
|
Max bending radius |
R180mm |
|
|
Min bending radius |
According to pipe diameter |
|
|
Max bending degree |
190° |
|
|
Feeding method |
Clamping/direct feeding |
|
|
Working speed |
Bending speed |
Max 90°/s |
|
Rotary speed |
Max 160°/s |
|
|
Feeding speed |
Max 1200mm/s |
|
|
Accuracy |
Bending accuracy |
±0 1° |
|
Rotary accuracy |
±0 1° |
|
|
Feeding accuracy |
±0. 1mm |
|
|
Information inputting method |
Working value (Y,B,C) |
|
|
Bending method |
Hydraulic bending (2A) |
|
|
Bending hydraulic motor power |
5.5kw |
|
|
Feeding servo motor power |
750w |
|
|
Rotary servo motor power |
400w |
|
|
Max storage unit |
1000groups |
|
|
Max oil pressure |
14Mpa |
|
|
Machine weight |
1600kg |
|
|
Machine size |
4200X950X1700mm |
|
Standard components (can be
customized):
|
Name |
Supplier |
|
PLC controller |
Japan Mitsubishi |
|
Touch screen |
Taiwan Winview |
|
Servo Motor |
Japan Mitsubishi / Yawakasa |
|
Servo driver |
Japan Mitsubishi / Yawakasa |
|
Reducer |
Taiwan RV/Xingxing |
|
Main electrics |
France Schneider |
|
Hydraulic motor |
Taiwan Yuanbang |
|
Valves |
Taiwan Seven Ocean |
|
Vane pump |
Taiwan Kaida |
|
Sealing element |
Taiwan Dingji |
|
Rack |
Germany Atlanta |
|
Linear guideway |
Taiwai HIWIN |
Send us email or fill in below contact form. We will reply you as soon as possible.
3d mandrel exhaust automatic cnc pipe bending machine,is widely used in bending 38mm/50mm/76mm stainless steel car/truck exhaust system.
Hydraulic square ss steel pipe bending machine,is widely used in bending 22mm/38mm/50mm/63mm/76mm metal pipes,pipe bends application to chairs,bicycle frames,furniture,exhaust systems,gym...
Stainless Steel Rolling CNC Pe Pipe Bending Machine, is widely used in bending 22mm/38mm/50mm/63mm/76mm metal pipes,pipe bends application to chairs,bicycle frames,furniture,exhaust systems,gym...
European Design Chair CNC GI Metal Pipe Bending Machine, is widely used in bending metal pipes,pipe bends application to chairs,bicycle frames,furniture,exhaust systems,gym...
cnc automatic 3d hydraulic round square tubing bender,is widely used in bending big size metal pipes mainly for the application of truck exhaust system,shipyard,gym frame...
CNC Making Cooper MS Pipe Bending Machine, is widely used in bending metal pipes,pipe bends application to chairs,bicycle frames,furniture,exhaust systems,gym...
