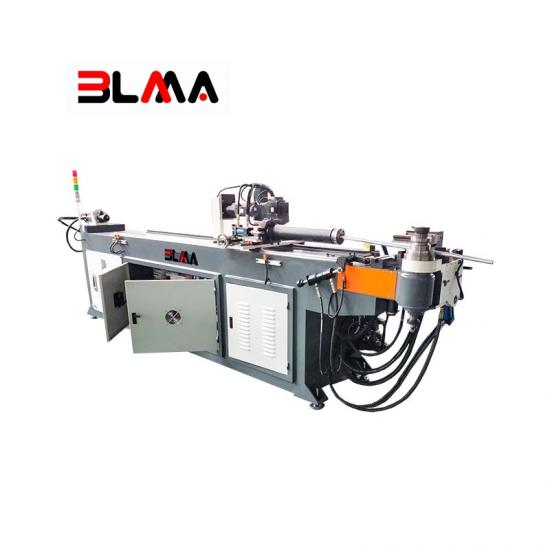

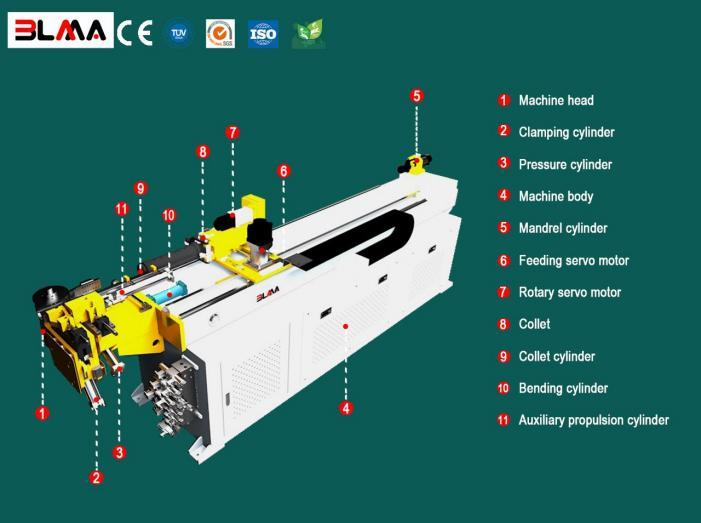

DW50CNC Pipe bending machine

Maximum 50mm outer diameter, 2mm thick round tube, square tube, elliptical tube, etc.

  • Item No.:

    DW50CNC Pipe bending
Inquiry now

BLMA’s CNC automatic pipe bending machine is the optimal choice for budget-friendly pipe bending (round, oval, rectangular, etc.), where high repeatability, superior bending quality, and low machine cost are required. These machines have proven their reliability in the furniture, automotive, shipbuilding and many other industries.

Machine features:

Using industrial touch screen, with the simple operation interface in English; high precision, high degree of automation and multi-functional; each action of machine is controlled by PLC programmer control system.

1. Fully automatic and CNC pipe bending machine.

2. Equipped with servo motor programmable axis

3.  Feeding: servo motor drive; Rotation: servo motor drive

4. Bending: hydraulic and encoder control.

5. Imported hydraulic system and PLC(standard) unit.

6. Automatic lubrication system for moving areas.

7. Self-diagnostic system, detecting the error immediately.

8. Multiple groups pipe-bending information storage.

9. Electric cabinet cooling fan and the hydraulic cooling system ensure the equipment long-time work stably under the high temperature.

10. Touch screen and human/machine interface control provide user friendly operations.








Specification:



Main specification

DW50CNC-2A- 1S

Max bending capacity

Φ50mm X2mm

Max bending radius

R250mm

Min bending radius

According to pipe diameter

Max bending degree

190°

Feeding method

Clamping/direct feeding



Working speed

Bending speed

Max 90°/s

Rotary speed

Max 160°/s

Feeding speed

Max 1200mm/s



Accuracy

Bending accuracy

±0 1°

Rotary accuracy

±0 1°

Feeding accuracy

±0. 1mm

Information inputting method

Working value  (Y,B,C)

Bending method

Hydraulic bending (2A)

Bending hydraulic motor power

5.5kw

Feeding servo motor power

1000w

Rotary servo motor power

750w

Max storage unit

1000groups

Max oil pressure

14Mpa

Machine weight

2000kg

Machine size

4200X1000X1700mm

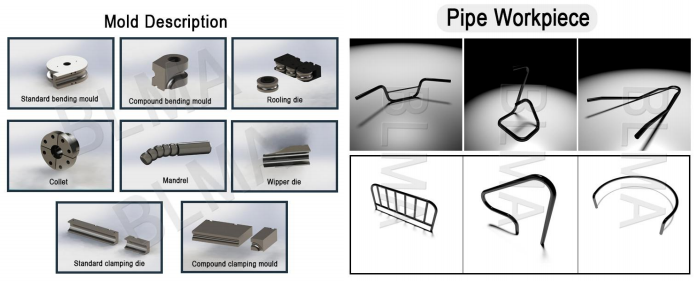

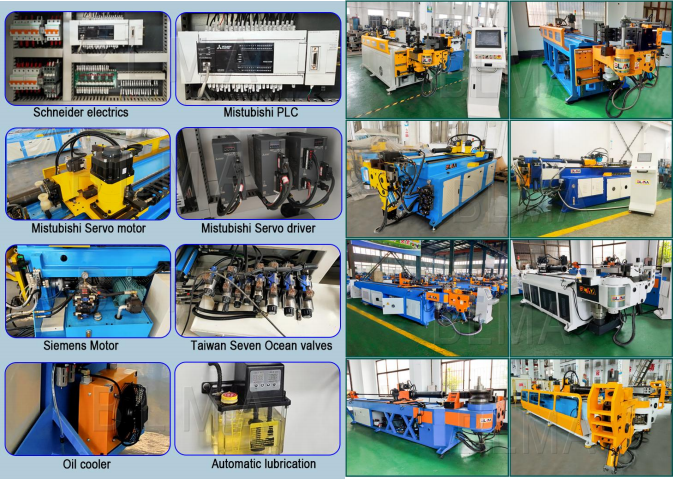

Standard components (can becustomized):



Name

Supplier

PLC controller

Japan Mitsubishi

Touch screen

Taiwan Winview

Servo Motor

Japan Mitsubishi / Yawakasa

Servo driver

Japan Mitsubishi / Yawakasa

Reducer

Taiwan RV/Xingxing

Main electrics

France Schneider

Hydraulic motor

Taiwan Yuanbang

Valves

Taiwan Seven Ocean

Vane pump

Taiwan Kaida

Sealing element

Taiwan Dingji

Rack

Germany Atlanta

Linear guideway

Taiwai HIWIN
