Advantages of multi-stack tube bending machine
When talking about CNC hydraulic tube bender with 2A-1S and 4A-2S, many customers don’t know the exact meaning of “S”. The “S” refers to the stack. The dies of a hydraulic pipe bending machine is more than one stack, so that we call it multi-stack pipe bending machine.
A multi-stack pipe bending machine is exclusively designed with several sets or stacks of tools. All of the dies including wiper die, pressure die, clamping die, and bending die are stacked in the machines to carry out several bends together.

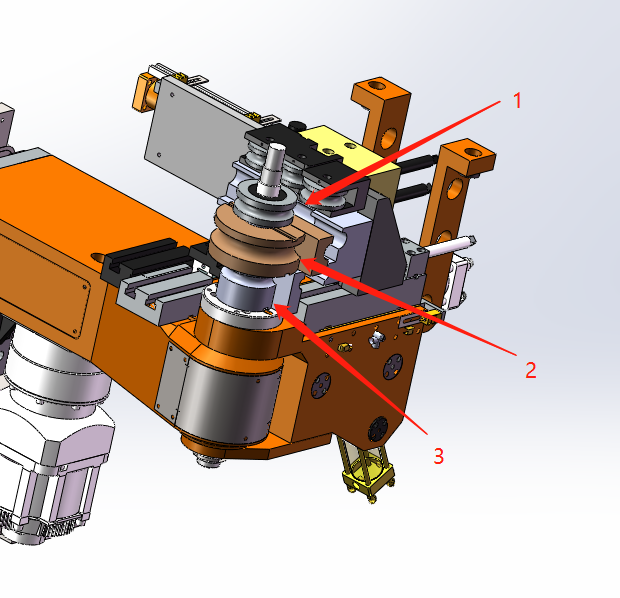

Figure 1 Multi-Stack tools
In the past, when the pipe has multiple bending radius, we could only bend the product with multiple bending radius by changing the tooling. However, the installation and disassembly of the bending fixture not only requires high professional skills of the operator, but also leads to low production efficiency, and it is difficult to ensure the accuracy of the bending process and the roundness of the bending.
Therefore, at present, for products designed with multi-bending radius, we usually use multi-stack CNC pipe bending machine, which can automatically realize the tooling moving up and down and left and right, so that the product can be processed at a time. It's very convenient.
After years of software and hardware development, BLMA double and multi-stack CNC tube bender is excellent in product quality and operating system, with user-friendly operation interface and convenient operation. The automatic detection system on our tube bender can eliminate the trouble in time and efficiently. The simulation demonstration function can clearly analyze the bending efficiency. Our users only need to import or export 3D engineering drawings into the machine, and optionally connect the computer to the bending machine. Our multi-stack bender can not only improve bending efficiency, but also ensure processing accuracy, as it is suitable for many industries based on past experience.

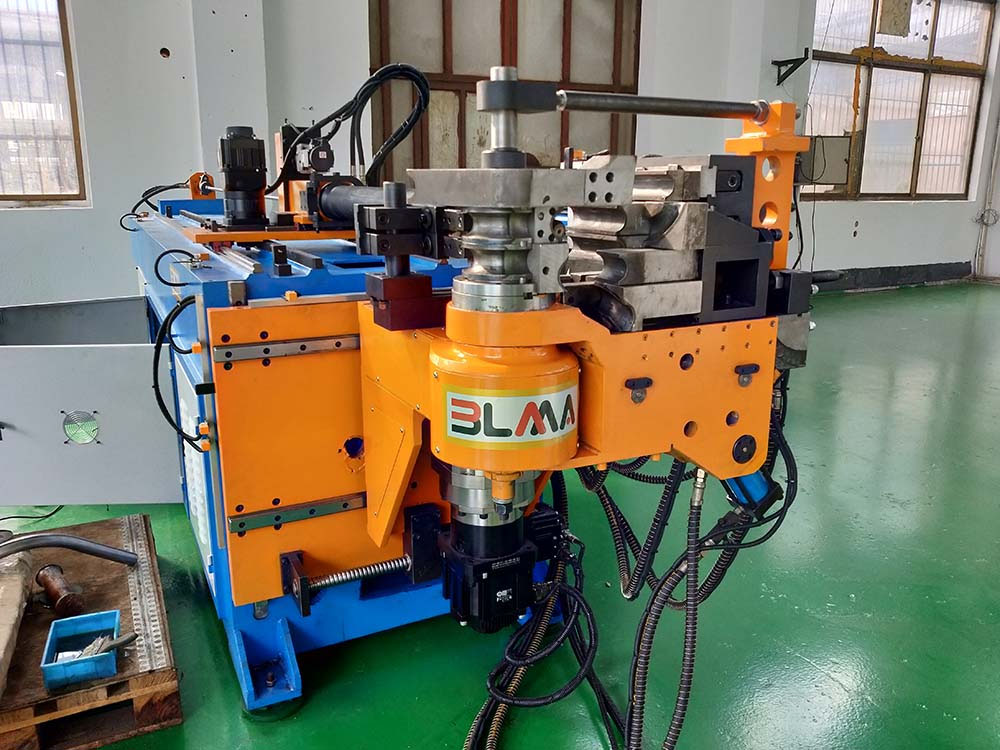

Figure 2 BLMA multi-stack pipe bending machine
