Why Automotive Tube Manufacturers Are Moving to RV Reducer Bending Heads

Automotive tube components — exhaust systems, brake lines, fuel lines, and seat frame structures — are among the most demanding parts in tube fabrication. They combine multiple bends across different planes, tight assembly tolerances, and high-volume production runs where even a small accuracy drift can turn into a costly line stoppage. For manufacturers and Tier 1 suppliers producing these parts, the bending head inside the CNC tube bending machine has a direct impact on scrap rate, cycle time, and final part fit.

## Where Bending Accuracy Breaks Down in Automotive Production

A typical automotive exhaust pipe or seat frame tube isn't a single bend — it's a sequence of bends across multiple planes, often with tight centerline radii to fit within a constrained engine bay or chassis envelope. In high-volume production, this creates two recurring problems:

- **Cumulative error across multiple bends.** Even a fraction of a degree of backlash at each bend adds up across a multi-bend part, so the final bend can be measurably off from the drawing.

- **Drift over production runs.** A bending head that starts accurate on part #1 but loses precision by part #5,000 forces manufacturers to add inspection steps or rework — both of which slow down the line and add cost.

For parts like brake lines and fuel lines, where fit tolerance is tied directly to safety and sealing performance, this isn't a minor inconvenience — it's a quality risk that can stop a production line or trigger a supplier audit.

## How RV Reducer Bending Heads Address This

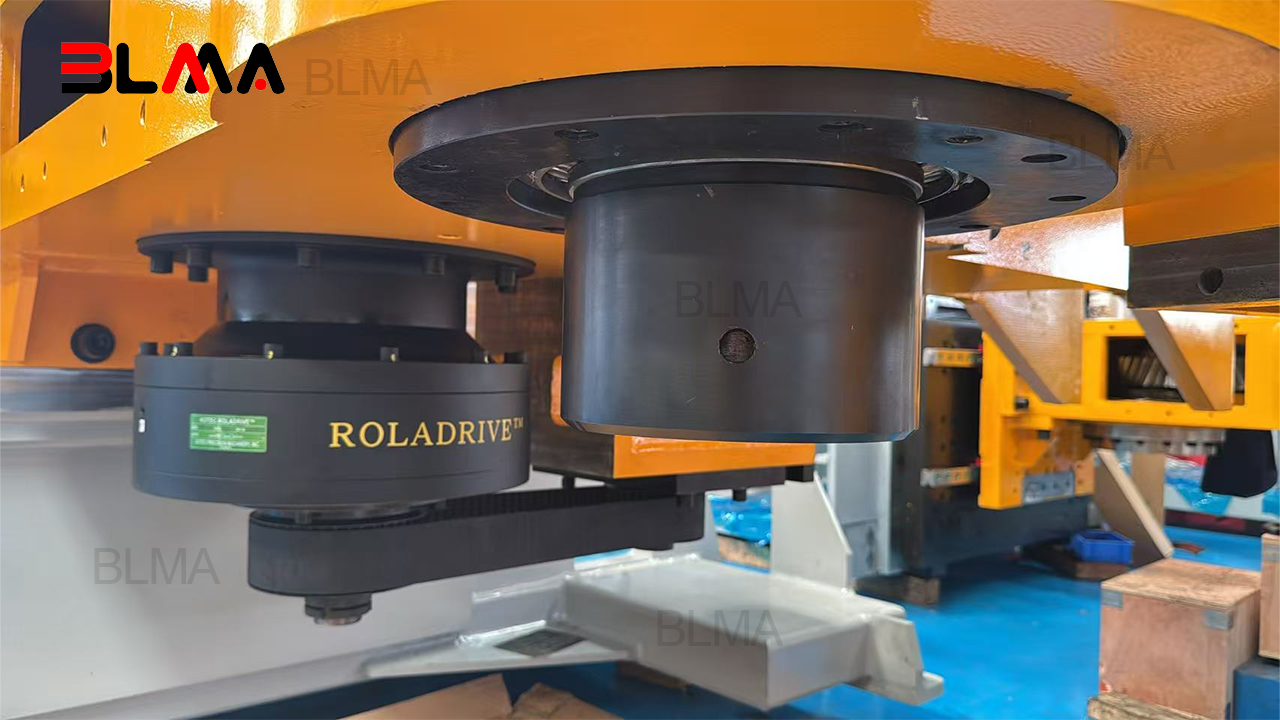

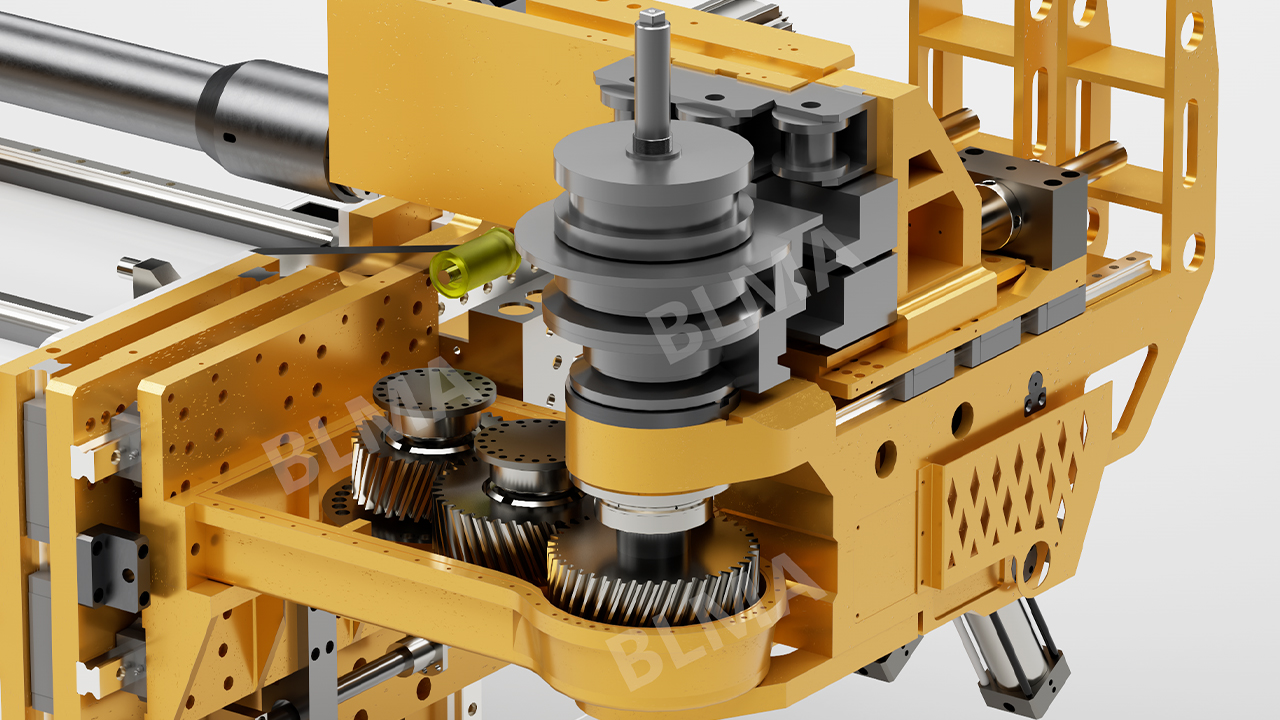

BLMA's CNC tube bending machines use a bending head built around an RV reducer paired with a single precision gear stage, replacing the multi-stage worm gear and chain-driven transmissions found in older bending head designs. Because the RV reducer itself is engineered for near-zero backlash, and the drive path is reduced to one precision gear stage instead of several, the bending head holds its accuracy consistently — from the first part of a shift to the last.

In practical terms for automotive production, this means:

- **Multi-bend parts hold tolerance without cumulative drift**, even on complex geometries like exhaust systems with several bends in different planes

- **Repeatability stays consistent across long production runs**, reducing the need for mid-run inspection or recalibration

- **Tighter fit tolerances are achievable** on safety-critical components like brake and fuel lines, without adding secondary correction steps

- **Tooling and mandrel wear is reduced**, since the bending head itself introduces less mechanical inconsistency into every cycle

This level of stability is particularly valuable for Tier 1 and Tier 2 automotive suppliers running lights-out or high-mix production, where a bending head that requires frequent recalibration directly eats into uptime.

## Built for Automotive Tube Applications

BLMA's CNC tube bending machines equipped with RV reducer bending heads are used across a range of automotive tube components, including:

- Exhaust pipe systems

- Brake and fuel lines

- Seat frame and headrest tubing

- Chassis and structural tubing

Each application places different demands on bend radius, wall thickness, and cycle time — which is why BLMA works with automotive manufacturers directly on tube specification, material, and tooling before recommending a machine configuration.

## Learn More

For a full technical breakdown of how RV reducer bending heads work — including the mechanical structure and how it compares to traditional transmission designs — see BLMA's engineering guide: [RV Reducer Bending Head Technology: How BLMA Achieves <0.01° Repeatability in CNC Tube Bending](https://www.blmamachinery.com/).

To discuss a tube bending solution for your automotive production line, https://wa.me/8618055540901(https://www.chinablma.com/) with your tube specification, material, and target cycle time.
