How do you use a pipe cutting machine?

This article mainly introduces how to use the pipe cutting machine. Here are 4 common questions:

1. Preparation before using tube cutter
1. Put on work clothes and the corresponding labor protection supplies;
2. Check whether the saw blade/cutter wheel is in good condition, even if there is a chip or crack, it should be replaced or repaired;
3. Check whether the connecting pipeline of the hydraulic system is damaged or leaking oil, and replace the corresponding positioning pin and guide sleeve;

2. Place the tube:
1. The pipe material must be neatly laid, and the end surface must be neatly close to the square rack of the pipe cutter.

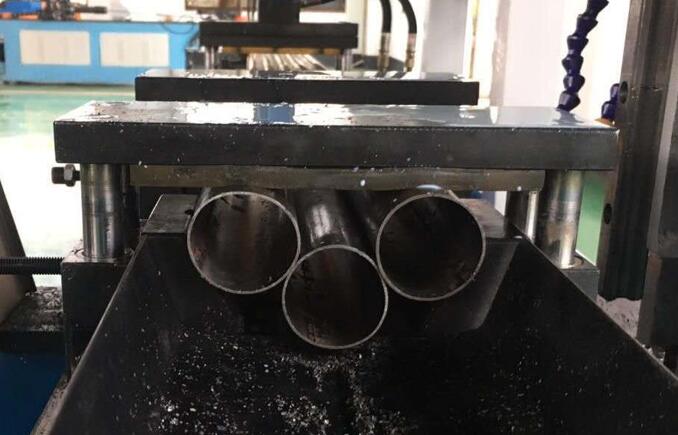

2. If the clamp to be used can clamp multiple pipes, it is best to fill the pipe every time so that the clamp can just clamp all the pipes, so that the pipes will not be loose during the feeding process and the cutting accuracy will not be affected.

3. How to replace the blade?
1. Turn on the power.
2. Turn on the hydraulic button.
3. Adjust to manual state.
4. The spindle returns to the origin.
5. Loosen the screw of the saw blade and milling cutter guard, and open the saw blade and milling cutter guard.
6. Loosen the steel brush screw of the saw blade milling cutter, and move the steel brush outward to facilitate the removal of the saw blade milling cutter for preparation.
7. Remove the milling cutter press block.
8. Remove the saw blade milling cutter.
9. Use an air gun to remove all iron filings around the saw blade and milling cutter.
10. Use clean cotton yarn to remove iron filings from the shim, press block, central shaft and end face.
11. Install a clean new saw blade milling cutter, and align the center hole and pin hole with the spindle pin hole. 12. Align the pressure block hole and the pressure block pin with the spindle pin hole and press the pressure block to a moderate force.
13. Move the saw blade milling cutter steel brush inward to approach the saw blade milling cutter, and manually start the saw blade milling cutter to drive the steel brush to rotate flexibly to lock the steel brush screw.
14. Close the saw blade and milling cutter guard, and tighten the guard screw.

4. How to operate the tube cutting machine?
1. Close the power switch in the console, the power indicator light is on, and the status switch on the PC is connected to the PN (running) position;
2. Start the oil pump, the indicator light of the oil pump is on, the hydraulic station is working, and then the work adjustment of the pipe cutting machine is carried out;
3. Adjust the overflow valve of the hydraulic station and observe the value of the pressure gauge to make it within an appropriate range. The working pressure of the hydraulic station is 1.5~25,000 MPa;
4. Turn the master switch to the manual position, adjust the fixed-length cylinder to the specified position according to regulations, adjust the fixed-length limit position, and adjust the starting and end points of the cutting knife and chamfering knife;
5. Manually start each oil cylinder and check each limit device. When the limit position is confirmed to be correct, turn the master switch to the automatic position and press the cycle start button to start the next cycle;
6. Loading, the trolley enters, the bracket is raised, the fixed length is in place, the delay, the clamping is in place, the cut-off feed delays the chamfering feed, the cut-off retreat, the chamfer retreats the fixed-length cylinder returns and relaxes , the carriage is lowered.
