How to use automatic pipe bender

Automatic numerical control pipe bender is also a kind of mechanical equipment commonly used in the market, mainly used for the preparation and molding of pipes. And the automatic numerical control pipe bending machine is loved by manufacturers in various fields because of its excellent performance, but many people are not very familiar with the specific operation of the automatic numerical control tube bender, causing work errors are not a minority. So what do I need to pay attention to?

Be familiar with the machine

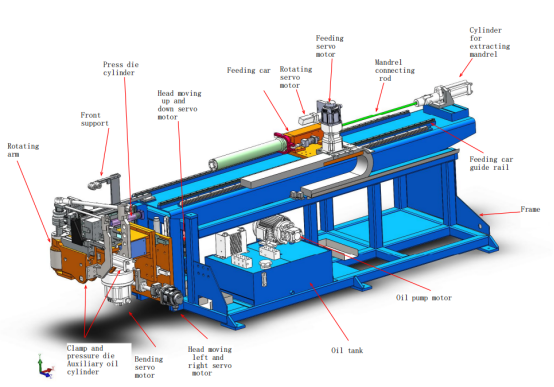

Figure 1: Composition of automatic pipe bender

The structure of the fully automatic CNC pipe bender is relatively compact (Figure 1). From the bed to the head, many parts are used with high reliability parts. Automatic CNC pipe bender is driven by hydraulic pressure, controlled by microcomputer, operation display system is touch type, the operator can quickly make the equipment to execute the required command, the preparation of ideal equipment. In addition, its operation mode is also more flexible, automatic operation, manual operation, semi-automatic operation can be.

Use method of fully automatic numerical control pipe bender

1.Check all parts before starting. Automatic CNC pipe bender belongs to precision equipment, any link is not careless, so in order to ensure that the equipment can be used normally for a long time, before formal use to develop the habit of checking parts, mainly to see whether the lines can operate normally.

2.No load operation. Under normal circumstances, the automatic numerical control pipe bender should be run without load before running, so as to ensure less error in cutting work.

3.Touch screen input parameter operation. When using the automatic CNC pipe bender, input the corresponding bending Angle through the touch screen and then perform the operation, which can efficiently and accurately prepare the multi-angle pipe bender.

4.Cut off the power in time. At the end of use, but also timely cut off the power supply, do a good job of cleaning and maintenance.

Notes for use of automatic numerical control pipe bender

1.The equipment shall not be close to the processing range of pipe fittings during operation. Especially when the fully automatic CNC pipe bender is set in full automatic mode, it will operate automatically, and it is easy to have an accident if someone is close to it.

2.Adjustment of machine tools is best done by one person. The adjustment of the fully automatic CNC pipe bender should avoid two people operating separately in the machine tool and the touch screen at the same time.

3.Cleaning should also pay attention to cleaning the pump oil filter. When cleaning the automatic CNC pipe bender, do not only clean the oil tank but also clean the oil inlet filter.

4.Maintain the components regularly. All parts of the fully automatic CNC pipe bender should be kept tight to achieve the final cutting effect, so it is necessary to regularly maintain and check the tightness of each part.
