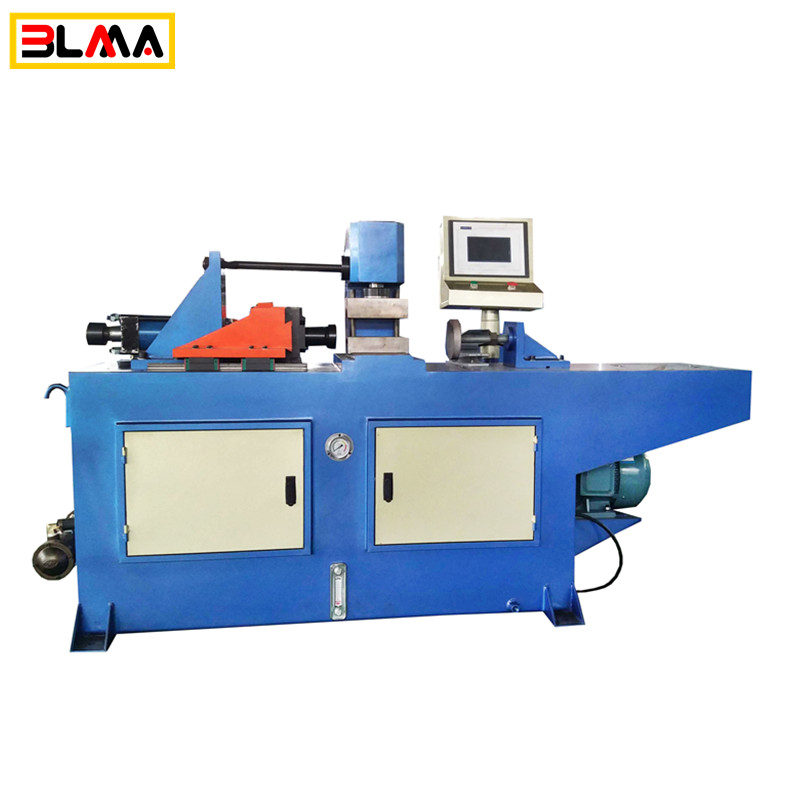

copper iron steel tube pipe end forming finishing machine, is widely used to produce a variety of different end forms for various functions,such as automotive exhausts, furniture, air conditioning, among others.
Item No.:
TM60-2Payment:
T/T,L/C,D/P,Western Union,MoneyGramProduct origin:
Jiangsu,ChinaColor:
White can be customizedShipping port:
ShanghaiLead Time:
15 working days after deposit confirmed
Factory direct sale price/offer free training and customer's place commissioning
Machine customized design/logo/color/size are acceptable
Product name: copper iron steel tube pipe end forming finishing machine
Tube end forming machine features:
1. Imported PLC unit or NC control, touch screen(optional), convenient operation, flexible settings and easy to learn.
2. Pipe reducing machine adopting Mitsubishi servo motor to change molds, or the hydraulic cylinder mold changing, accurately and steady.
3. Adopting high-accuracy linear slide rail, stable propulsion.
4. Can equip with all kinds of forming molds, for pipe end forming like expanding, contracting and other special forming.
5. Hydraulic cooling system to ensure the equipment long-time work stably under the high temperature.
Specification of cnc tube end forming machine:
|
Max tube size |
Diameter 60mm x 3mm thickness |
|
Max processing length |
120mm |
|
Oil pressure |
12Mpa |
|
Motor power |
5.5Kw |
|
Machine size |
200x60x140cm |
|
Weight |
1250kg |
Standard components:
|
Pump |
HIGH-TECH,Taiwan |
|
Linear guide |
HIWIN,Taiwan |
|
Touch screen |
HIGH-TECH,Taiwan |
|
PLC control |
Japan Mitsubish |
Send us email or fill in below contact form. We will reply you as soon as possible.
