Three-cylinder hydraulic metal iron pipe hole punching machine

Three-cylinder hydraulic metal iron pipe hole punching machine, is 3 stations machine,mainly used in punching rectangle pipe/angle steel profile with the function of up punching and side punching.

  • Item No.:

    BLMA-70CNC
  • Payment:

    T/T,L/C,D/P,Western Union,MoneyGram
  • Product origin:

    Jiangsu,China
  • Color:

    White can be customized
  • Shipping port:

    Shanghai
  • Lead Time:

    15 working days after deposit confirmed
Inquiry now

Factory direct sale price/offer free training and customer's place commissioning
Machine customized design/logo/color/size are acceptable

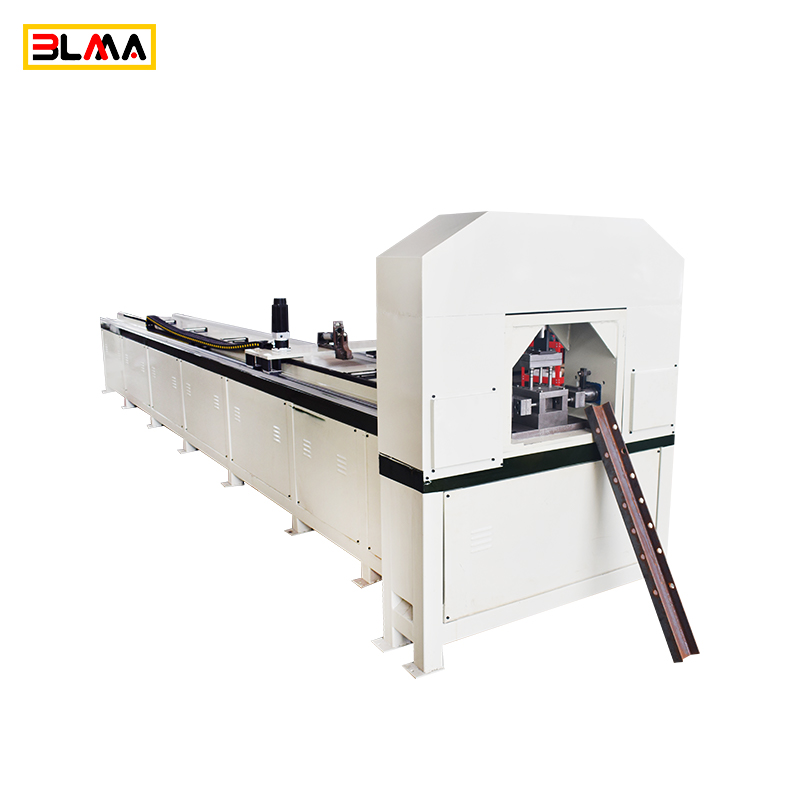

Product name: Three-cylinder hydraulic metal iron pipe hole punching machine


pipe punching machine

hydraulic punching machine features:


1.Touch Screen settings, CNC control system, precise servo motor positioning, module storage memory function.

2. iron hole punching machine Structure: Steel plate welded structure

3. Mould replacement: change the die easily without adjusting the dies to reduce the mould damage rate and pipe fittings rejection rate due to the dies setting error. Skilled workers can change the mould within 10 minutes for the metal hole punching machine.

4. Step-less operation adjustment of metal punchine machine, hydraulic loops designed with zero load, combined with extremely low frequency oil pump motor, effectively reduced noise, increased motor efficiency and service duration.

5. The electrical control system of pipe hole punching machine is designed with the human machine interface, range adjustment use digital scale, setting low speed position, floor level position, and operation precise and easy.

Specification of pipe hole punching machine:

Main specification

BLMA-70CNC

Maxpunching capacity

Φ80x3mm(round)  Φ110x60x3mm(square)

Maxfeeding length(Can be customized)

3000mm

Max cylinder strokes

120mm

Main motor power(punching hole)

7.5KW

Servo motor power(feeding)

750W

Max feeding speed

1000mm/s

Punching speed

20-40times/Min

Hydraulic pressure

20TonX2+30Ton

Machine weight

1600kg

Machine size

3900X1300X1700mm

Standard components:

Name

Supplier

Hydraulic motor

Siemens, Germany

Servo Motor

EASYCAT,Taiwan/Yonghong,Taiwan

Main electrics

Schneider,France

Program controller

EASYCAT,Taiwan/Yonghong,Taiwan

Liner guide

TBI,Taiwan

Touch screen

EASYCAT,Taiwan/Yonghong,Taiwan

Hydraulic valves

Rexroth,German

Oil pump

Sunny,USA

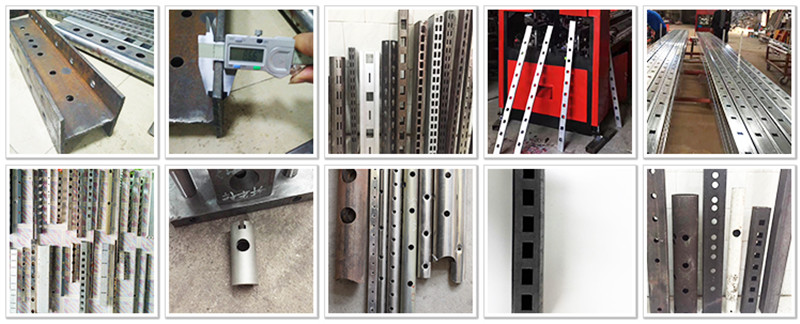

Application of pipe hole punching machine:

pipe punching machine
