Double station cnc automatic pipe tube hole punching machine

Double station cnc automatic pipe tube hole punching machine, is widely used in punching different types of pipes for many applications.

  • Item No.:

    BLMA-40CNC
  • Payment:

    T/T,L/C,D/P,Western Union,MoneyGram
  • Product origin:

    Jiangsu,China
  • Color:

    White, can be customized
  • Shipping port:

    Shanghai
  • Lead Time:

    15 working days after deposit confirmed
Inquiry now

Factory direct sale price/offer free training and customer's place commissioning
Machine customized design/logo/color/size are acceptable

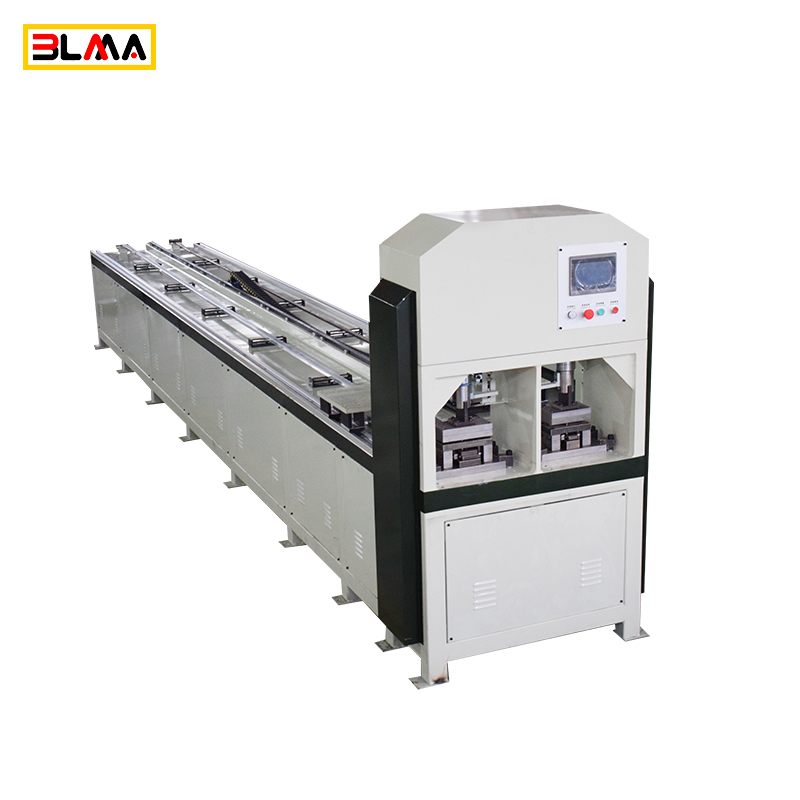

Product name: Double station cnc automatic pipe tube hole punching machine


cnc pipe punching machine

CNC pipe punching machine features:

Factory direct sale price/offer free training and customer's place commissioning
Machine customized design/logo/color/size are acceptable

1.Touch Screen settings, CNC control system, precise servo motor positioning, module storage memory function.

2. Automatic punching machine Structure: Steel plate welded structure

3. Mould replacement: change the die easily without adjusting the dies to reduce the mould damage rate and pipe fittings rejection rate due to the dies setting error. Skilled workers can change the mould within 10 minutes for the cnc hole punching machine.

4. Step-less operation adjustment, hydraulic loops designed with zero load, combined with extremely low frequency oil pump motor, effectively reduced noise, increased motor efficiency and service duration.

5. The electrical control system of tube punching machine is designed with the human machine interface, range adjustment use digital scale, setting low speed position, floor level position, and operation precise and easy.

Specification of automatic hole punching machine:

Main specification

BLMA-40CNC

Max punching capacity

Φ60x3mm(round)  Φ50x50x4mm(square)

Max feeding length(Can be customized)

3000mm

Max cylinder strokes

120mm

Main motor power(punching hole)

7.5KW

Servo motor power(feeding)

0.75KW

Max feeding speed

1000mm/s

Punching speed

80-120times/Min

Hydraulic pressure

40Ton

Machine weight

1800kg

Machine size

3900X1300X1700mm

Standard components:

Name

Supplier

Hydraulic motor

Siemens, Germany

Servo Motor

EASYCAT,Taiwan/Yonghong,Taiwan

Main electrics

Schneider,France

Program controller

EASYCAT,Taiwan/Yonghong,Taiwan

Liner guide

TBI,Taiwan

Touch screen

EASYCAT,Taiwan/Yonghong,Taiwan

Hydraulic valves

Rexroth,German

Oil pump

Sunny,USA

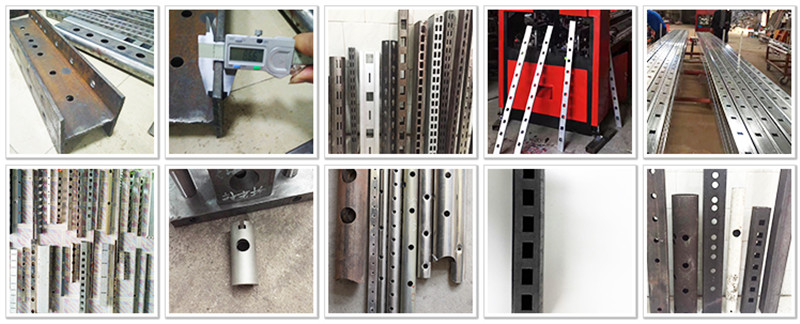

Application of automatic pipe punching machine:

cnc tube punching machine
