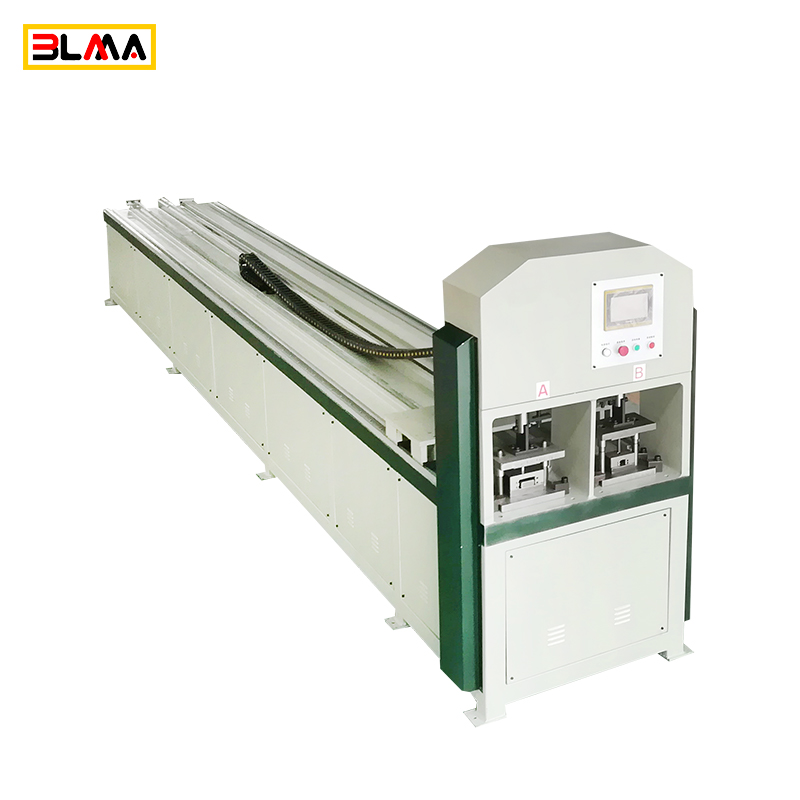

cnc automatic steel square tube pipe hole punching machine, is 2 stations machine,can double line working at one time,tube punching machine iswidely used in punching different types of pipes for many applications.
Item No.:
BLMA-60CNCPayment:
T/T,L/C,D/P,Western Union,MoneyGramProduct origin:
Jiangsu,ChinaColor:
White can be customizedShipping port:
ShanghaiLead Time:
15 working days after deposit confirmed
Factory direct sale price/offer free training and customer's place commissioning
Machine customized design/logo/color/size are acceptable
Product name: cnc automatic steel square tube pipe hole punching machine
Tube punching machine features:
1.Touch Screen settings, CNC control system, precise servo motor positioning, module storage memory function.
2. Tube hole punching machine Structure: Steel plate welded structure
3. Mould replacement: change the die easily without adjusting the dies to reduce the mould damage rate and pipe fittings rejection rate due to the dies setting error. Skilled workers can change the mould within 10 minutes for the cnc tube punching machine.
4. Step-less operation adjustment, hydraulic loops designed with zero load, combined with extremely low frequency oil pump motor, effectively reduced noise, increased motor efficiency and service duration.
5. The electrical control system of square tube punching machine is designed with the human machine interface, range adjustment use digital scale, setting low speed position, floor level position, and operation precise and easy.
|
Main specification |
BLMA-60CNC |
|
Max punching capacity |
Φ60x3mm(round) Φ50x50x4mm(square) |
|
Max feeding length(Can be customized) |
3000mm |
|
Max cylinder strokes |
120mm |
|
Main motor power(punching hole) |
7.5KW |
|
Servo motor power(feeding) |
0.75KW |
|
Max feeding speed |
1000mm/s |
|
Punching speed |
80-120times/Min |
|
Hydraulic pressure |
40Ton |
|
Machine weight |
1800kg |
|
Machine size |
3900X1300X1700mm |
Standard components:
|
Name |
Supplier |
|
Hydraulic motor |
Siemens, Germany |
|
Servo Motor |
EASYCAT,Taiwan/Yonghong,Taiwan |
|
Main electrics |
Schneider,France |
|
Program controller |
EASYCAT,Taiwan/Yonghong,Taiwan |
|
Liner guide |
TBI,Taiwan |
|
Touch screen |
EASYCAT,Taiwan/Yonghong,Taiwan
|
|
Hydraulic valves |
Rexroth,German |
|
Oil pump |
Sunny,USA |

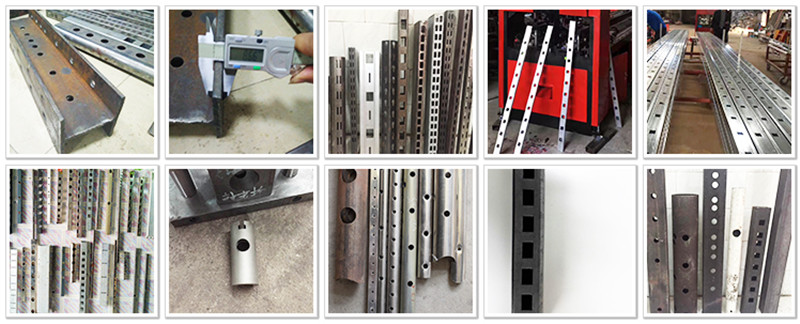

Application of tube hole punching machine:
