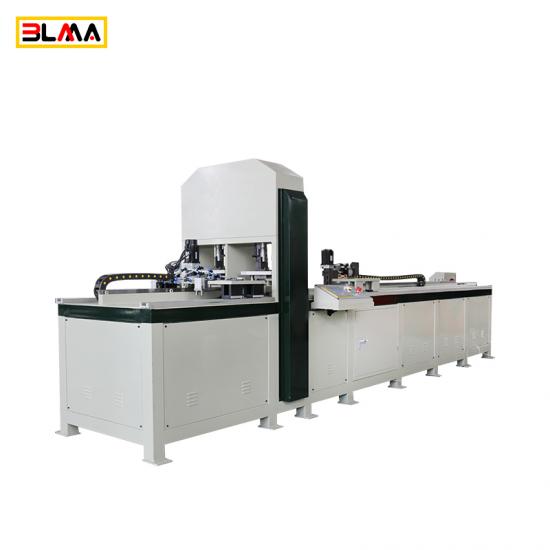

CNC hydraulic pipe tube hole punching machine steel aluminum

CNC hydraulic pipe tube hole punching machine steel aluminum, is widely used in punching different types of pipes for many applications.

  • Item No.:

    BLMA-60CNC
  • Payment:

    T/T,L/C,D/P,Western Union,MoneyGram
  • Product origin:

    Jiangsu,China
  • Color:

    White can be customized
  • Shipping port:

    Shanghai
  • Lead Time:

    15 working days after deposit confirmed
Inquiry now

Factory direct sale price/offer free training and customer's place commissioning
Machine customized design/logo/color/size are acceptable

Product name: CNC hydraulic pipe tube hole punching machine steel aluminum

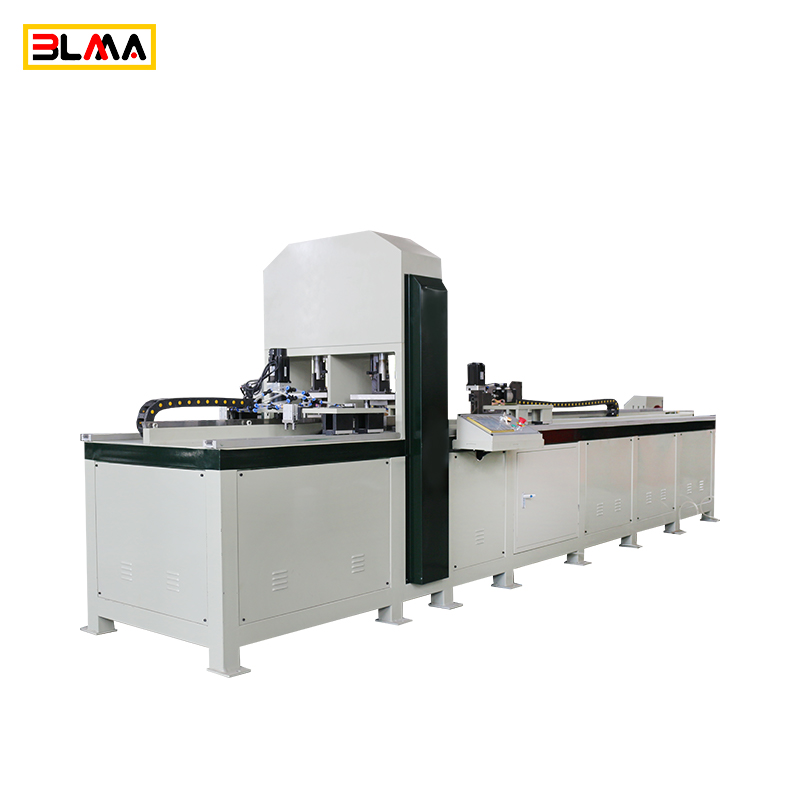

cnc tube punching machine

CNC tube punching machine features:


1.Touch Screen settings, CNC control system, precise servo motor positioning, module storage memory function.

2. hole punching machine Structure: Steel plate welded structure

3. Mould replacement: change the die easily without adjusting the dies to reduce the mould damage rate and pipe fittings rejection rate due to the dies setting error. Skilled workers can change the mould within 10 minutes for the hole punching machine aluminum.

4. Step-less operation adjustment, hydraulic loops designed with zero load, combined with extremely low frequency oil pump motor, effectively reduced noise, increased motor efficiency and service duration.

5. The electrical control system is designed with the human machine interface, range adjustment use digital scale, setting low speed position, floor level position, and operation precise and easy.

6. For the last hole very approaching the tube end,choose this type of hydraulic pipe punching machine,you won't turn the tube,pulling servo motor can pull ahead,then do the last punching.

Specification of automatic hole punching machine:

Main specification

BLMA-60CNC

Maxpunching capacity

Φ100x3mm(round)  Φ80x60x3mm(square)

Maxfeeding length(Can be customized)

3000mm

Max cylinder strokes

120mm

Main motor power(punching hole)

7.5KW

Servo motor power(feeding)

1KW

Servo motor power(pulling)

0.75KW

Max feeding speed

1000mm/s

Punching speed

20-40times/Min

Hydraulic pressure

30TonX2

Machine weight

1600kg

Machine size

5100X1100X1700mm

Standard components:

Name

Supplier

Hydraulic motor

Siemens, Germany

Servo Motor

EASYCAT,Taiwan/Yonghong,Taiwan

Main electrics

Schneider,France

Program controller

EASYCAT,Taiwan/Yonghong,Taiwan

Liner guide

TBI,Taiwan

Touch screen

EASYCAT,Taiwan/Yonghong,Taiwan

Hydraulic valves

Rexroth,German

Oil pump

Sunny,USA

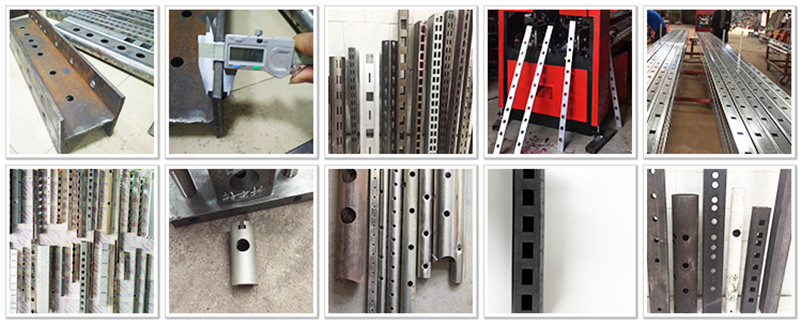

Application of hydraulic pipe punching machine:

cnc pipe punching machine
