CNC metal aluminum copper automatic profile pipe tube punching machine

CNC metal aluminum copper automatic profile pipe tube punching machine, is single-line working for copper tube punching machine,our automatic punching machine is widely used in punching different types of metal pipes/profiles/plate for many applications.

  • Item No.:

    BLMA-30CNC
  • Payment:

    T/T,L/C,D/P,Western Union,MoneyGram
  • Product origin:

    Jiangsu,China
  • Color:

    White can be customized
  • Shipping port:

    Shanghai
  • Lead Time:

    15 working days after deposit confirmed
Inquiry now

Factory direct sale price/offer free training and customer's place commissioning
Machine customized design/logo/color/size are acceptable

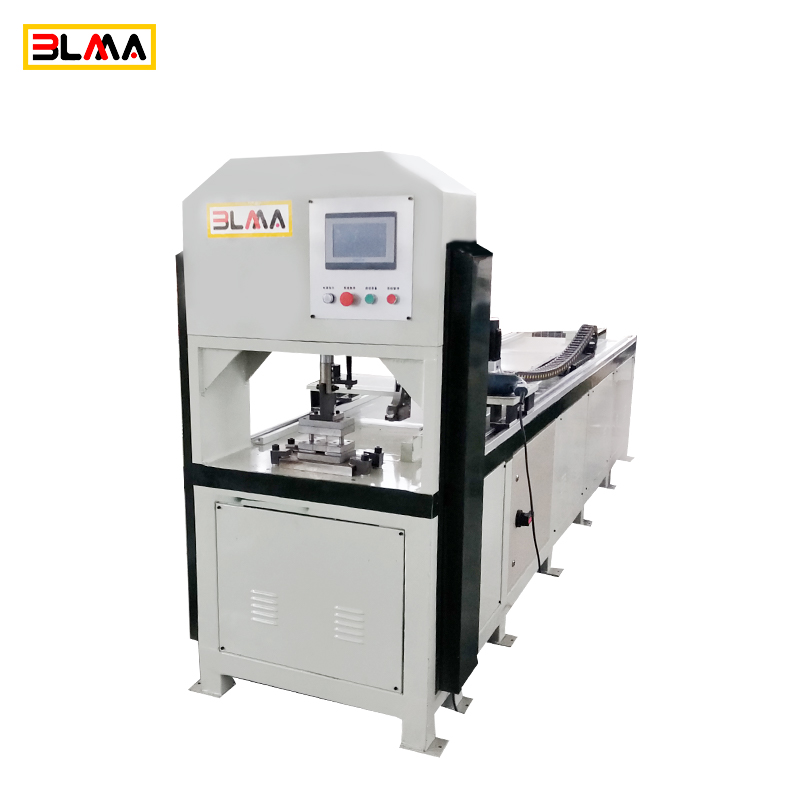

Product name: CNC metal aluminum copper automatic profile pipe tube punching machine


aluminum profile punching machine

Automatic punching machine features:


1.Touch Screen settings, CNC control system, precise servo motor positioning, module storage memory function.

2. Single station Pipe punching machine Structure: Steel plate welded structure

3. Mould replacement: change the die easily without adjusting the dies to reduce the mould damage rate and pipe fittings rejection rate due to the dies setting error. Skilled workers can change the mould within 10 minutes for the cnc metal punching machine.

4. Step-less operation adjustment, hydraulic loops designed with zero load, combined with extremely low frequency oil pump motor, effectively reduced noise, increased motor efficiency and service duration.

5. The electrical control system of copper tube punching machine is designed with the human machine interface, range adjustment use digital scale, setting low speed position, floor level position, and operation precise and easy.

Specification of automatic punching machine:

Main specification

BLMA-30CNC

Max punching capacity

Φ40x3mm  Φ40x40x3mm

Max feeding length(Can be customized)

3000mm

Max cylinder strokes

100mm

Main motor power(punching hole)

7.5KW

Servo motor power(feeding)

0.75KW

Max feeding speed

1000mm/s

Punching speed

30-60times/Min

Hydraulic pressure

30Ton

Machine weight

1200kg

Machine size

3950X930X1700mm

Standard components:

                   Name

Supplier

Hydraulic motor

Siemens, Germany

Servo Motor

EASYCAT,Taiwan/Yonghong,Taiwan

Main electrics

Schneider,France

Program controller

EASYCAT,Taiwan/Yonghong,Taiwan

Liner guide

TBI,Taiwan

Touch screen

EASYCAT,Taiwan/Yonghong,Taiwan

Hydraulic valves

Rexroth,German

Oil pump

Sunny,USA

Application of tube hole punching machine:

tube punching machine
