Effect of machine length of pipe bender

We often meet customers in the sales process, in the purchase of pipe bender is consulting whether can change the length of pipe bending machine, we mentioned above is different because the coffin very long to machine the extended scheme, recently often meet with the customers who want their original 4 meters or 6 meters long machine shorten to 3 m.

In fact it is possible. If your pipe fitting is very long but the machine space is small, the machine tool can be shortened. Under the ordinary pipe bending action, the feeding distance of CNC machine tool is not enough, which can be completed by the reciprocating clamping of the trolley, as shown in Figure 1.

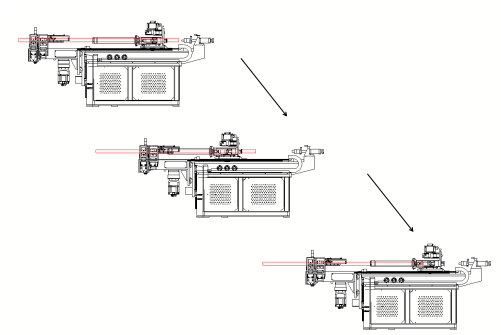

Figure 1 feeding car clamping feeding

In this way, even if the car travel is not enough, the long pipe can also be completed by clamping.

However, it is not recommended to modify gi pipe bending machine when it comes to bending parts. First of all, the bending should be pushed as far as possible to ensure that the bending is formed once, and the pushing method is adopted. And once completed push bending will need to make sure that the car schedule enough to push the whole curved arc introduced. However, when judging whether the car travel is enough, it is necessary to subtract the nose gripping distance and the avoidance interference point between the car and the machine head on the basis of the distance from the car gripping position to the machine head. Such distance is the actual push distance. if the distance is greater than the circular arc length is not affected, If the value is less than this value, you are advised to determine the length according to the manufacturer's suggestions. Although it is not impossible to use the way of clipping, but clipping is used for bending, which needs to calculate a lot of distance data including each push, which increases the difficulty of operation, and it is difficult for non-professionals to complete this work.
