Talking about the use trend of Pipe punching machine
2022-07-25
Talking about the use trend of Pipe punching machine

The pipe punching machine has only appeared in a short period of 20 years, but it has developed rapidly, from a simple manual pipe punching machine to a fully automatic pipe punching machine

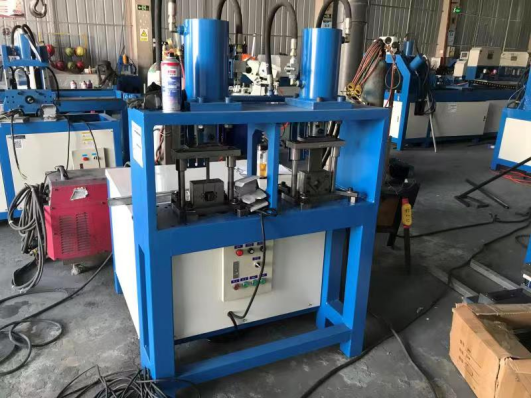

Figure 1 Pipe Punching Machine


What is the reason for this device to have such a huge development? Let's find out in detail.

In the early days of the production of hole products, drilling machines were often used for processing. The drilling machine processing would face a problem. The position of the holes needs to be manually calibrated, and the burrs of the holes are also large and uneven. In order to solve these problems, people invented the punching hole machine, but the punching machine needs an independent feeding mechanism, so it occupies a large area. So people integrated these problems and perfected them, and the development of pipe punching machines appeared. it not only solved the feeding problem of the precision of the drilling machine, but also solved the problem of the oversized equipment of the punching machine.

Among the Pipe punching machines, The automatic pipe punching machines are also the most popular (Figure 2)



Figure 2  Fully automatic punching machine


Single-station or double-station models can be customized as needed to increase productivity, and support multi-directional punching as shown in Figure 3

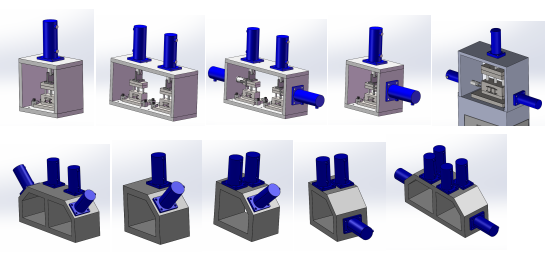

Figure 3  Combination of punching machine


When using, just put the pipe on the machine to fix it, set the program and start it, the machine will root according to the program, the material is automatically fed and the processing is completed. However, although the punching machine is very convenient, But there are still drawbacks in use. For example, when facing thick plates, the punching machine is still Not a substitute for a drill press. Therefore, the punching machine is currently the best choice for thin plates and pipe profiles.choose, for thick plates or use a suitable drilling machine for processing
